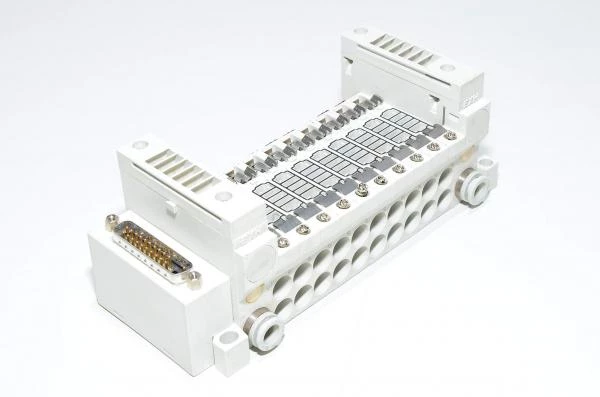

SMC VV5Q11-10FU0-S-Q F-kit D-sub top, internal silencers, 10x valve station slots, VQ1000 series magnetic valve manifold unit

Valve manifold technical information:

• Model:
  • SMC VV5Q11-10XXXFU0-S-Q (SMC VV5Q11-10FU0-S-Q)
• Compatibility:
  • SMC VQ1000 series magnetic valve modules and connectors.
    • Valve modules are available with metallic or rubber seals.
• Number of valve stations:
  • 10x
• Pneumatic connections:
  • 2x 8mm quick fittings for air supply
  • 20x places for fitting assemly with quick fitting connectors, freely configurable (Connectors are sold separately)
• Electrical connections:
  • DB-25M, 25 pin male D-connector

This package includes:

• Valve manifold
• Rubber gasket for every valve module /  blanking plate

Depending on the unit some may have missing plastic flaps at the bottom. This does not influence the operation of the device. We will sell the items best looking units first.

VQ1000 series valve manifold can be equipped according to your own wish. For these units there are available different size quick connectors for tubes, various valve modules and in case you do not need some valve there is also empty blanking pieces available, which can be used to reserve space for future expansion needs. VQ valves are ideal for applications which require high speed, operating frequency, stable response time and long service life.

Benefits of the valve manifold:

• If some unit or quick connector breaks up, it is easy and fast to change.
• If whole valve station gets it from say a nice dose of kinetic energy, then you can exchange the whole slot with ease. No need to buy completely new valve manifold.
• When installing you will achieve clean installation with multiple valves at once and save on installation time, cabling and tubing when comparing the job into a situation where you would have to do it with individual valves.
• And you cant argue that this thing looks much more cooler than a pile of individual valves. This also fits in much smaller space.
