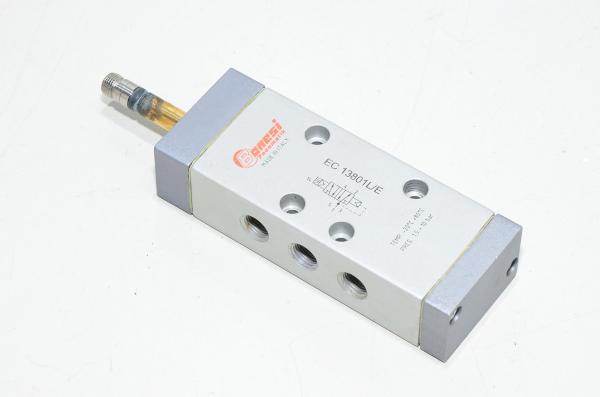

Bonesi pneumatik EC13801L/E 5/2 monostable solenoid valve with G1/8" port

EC 13801L/E is a 5/2 monostable solenoid valve with a 1/8” port size. This type of valve is typically used in pneumatic systems for controlling airflow direction, providing reliable switching between two output ports in response to an electric signal. Its monostable design means that it returns to a default position when not energized. This valve is designed for industrial environments where precise airflow control is necessary.

• Function:
  • 5/2 meaning 5x ports 2x positions, double solenoid
  • Directional valve unit
  • Position is changed electronically
• Actuation:
  • Monostable (returns to a default position when de-energized)
• Port size:
  • G1/8"
• Construction and design:
  • Spool valve
• Nominal flow rate:
  • 960l/min
• Power consumption:
  • 5W
• Operating voltage:
  • 24VAC
  • 24VDC
• Protection class:
  • IP65
• Operating temperature:
  • -20...+80°C
• Connector:
  • 2 positions 180°
