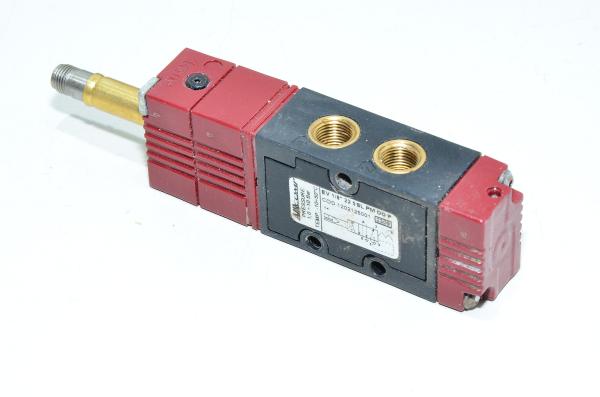

Aircomp EV 1/8" 22 5 SL PM OO P 5/2 solenoid valve

A solenoid valve is a pneumatic directional control valve commonly used to control actuators or cylinders in automated systems. A solenoid valve is an essential component in pneumatic systems requiring efficient and directional air flow for controlling actuators or cylinders.

Solenoid valve technical details:

• Function:
  • 5/2 meaning 5x ports 2x positions, double solenoid
  • Directional valve unit
  • Position is changed electronically
• Actuation:
  • Monostable (returns to a default position when de-energized)
• Port size:
  • G1/8"
• Body size:
  • 22mm
• Body material:
  • Technopolymer
• Construction and design:
  • Spool valve
• Nominal flow rate:
  • 670l/min
• Pressure:
  • 1,0...10bar
• Operating temperature:
  • -10...+50°C
• Materials:
  • Operator:
    • Brass
    • Stainless steel
  • Operator body:
    • POM
  • Piston gasket:
    • NBR
  • Insert:
    • Brass
  • Spacers:
    • Brass
  • Spring:
    • Stainless steel
  • Piston:
    • POM
  • Gasket:
    • NBR
  • Spool:
    • Nickel plated aluminium
  • Body valve:
    • PBT+FV

Download Aircomp EV 1/8" 22 5 SL PM OO P 5/2 solenoid valve technical datasheet
