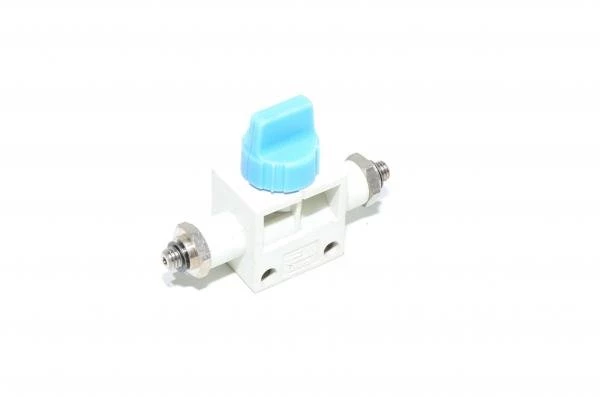

SMC VHK3-M5-M5 inline type 3-port finger valve with M5 connections

Quantity

pcs

Make an offer

Need to turn on and off some flow? How about this thing?

Common uses for shut valve ls:

This model purges the remaining pressure from the output when shut. Does not have exhaust port which could be mounted with tube.

Manual valves
Connections	M5x0.8 - M5x0.8
Manufacturing material	Body: PBT Knob: PBT Cam ring: POM Stem: POM Spring: SUS304 Packing, O-ring, valve: NBR
Operating medium	Compressed air
Operating pressure	-100kPa...1.0MPa ( Proofing pressure 1.5MPa
Operating temperature	0...60°C

Price Including VAT: 5,02€
