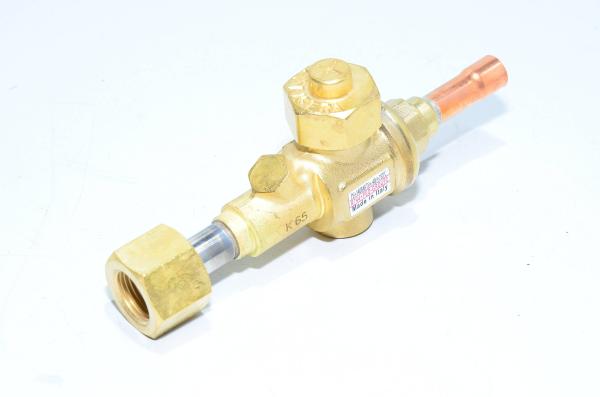

Refrigera BV21A038G2K00 2-way ball valve for, R744 (CO2), 3/8", K65, G3/8"F, 140bar *new*

These valves are used particularly in commercial and industrial refrigeration systems where carbon dioxide (CO2) is used as a refrigerant. CO2 is an environmentally friendly and efficient refrigerant, but it requires high operating pressures, making this valve suitable for handling it.

Valve technical details:

• Valve type:
  • 2-way ball valve without Schrader service valve
• Refrigerant type:
  • R744 (CO²)
• Valve material:
  • K65 kupariseos
• Kv value:
  • 4m³/h
• Port A:
  • 3/8" ODS (Outside diameter solder)
  • Max 9,7mm tube goes into the flared part
  • Tube connection CuFe2P
    • Soldering with min 5% copper-iron-phosphorus alloy
• Port B:
  • Female ISO G3/8"
• Temperature range:
  • -40...+150°C
• Max operating pressure:
  • 140bar
