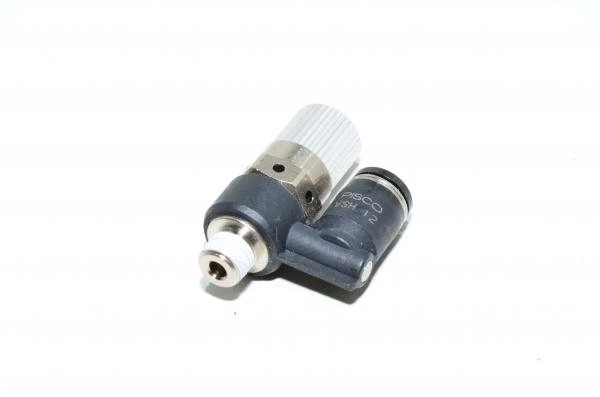

Pisco VSH12-801 vacuum ejector with integrated silencer

The Vacuum Generator, creating vacuum by use of compressed air, can be used in combination with a Vacuum Pad to convey materials. Vacuum Generator comes in a variety of performances and types to meet your applications demands.

Application example:

• Chip bonding
• Chip mounting
• Picking and placing miniature components
• Escorting printed matter

Vacuum unit´s technical information:

• Vacuum Module Function:
  • Frame mounted type vacuum generator / vacuum ejector with internal muffler
• Tube connection:
  • 8mm quick connector for vacuum port
• Air supply connector:
  • R1/8
• Nozzle size:
  • 1.2mm
• Max vacuum pressure:
  • -93kPa.
• Supply pressure:
  • 0.5MPa
• Suction flow:
  • 38l/min
• Air consumption:
  • 70l/min
• Integrated noise suppressor:
  • Yes
