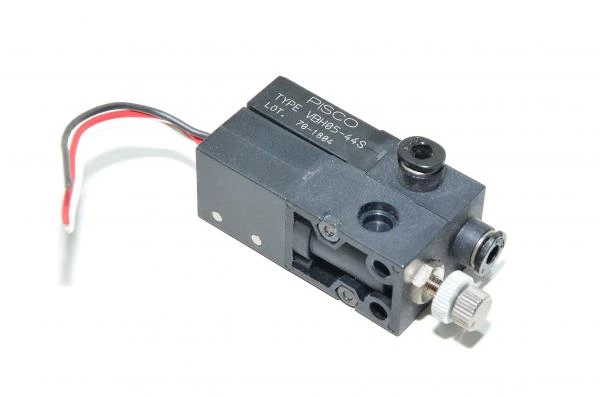

Pisco VBH05-44S adjustable vacuum ejector + vacuum switch

The Vacuum Generator, creating vacuum by use of compressed air, can be used in combination with a Vacuum Pad to convey materials. Vacuum Generator comes in a variety of performances and types to meet your applications demands.

The vacuum switches cord size varies between units. Sold units have min wire length of 50mm (typically over 150mm).

Application example:

• Chip bonding
• Chip mounting
• Picking and placing miniature components
• Escorting printed matter

Vacuum unit's technical information:

• Vacuum Module Function:
  • Box type vacuum generator / vacuum ejector
• Tube connection:
  • 4mm quick connector
• Nozzle size:
  • 0.5mm
• Max vacuum pressure:
  • -73kPa.
• Supply pressure:
  • 0.35MPa
• Suction flow:
  • 6.5l/min
• Air consumption:
  • 9l/min
• Integrated noise suppressor:
  • Yes
• Pressure sensing mode:
  • Diaphram micro switch
• Operating medium
  • Air
• Operating temperature:
  • 0...60°C
• Max switching voltage:
  • 250V
• Max switching current:
  • 3A
• Pressure setting range:
  • -20~-67kPa
• Accuracy:
  • +/- 5kPa
• Differential response:
  • 7~16kPa
• Set value (when departed from factory)
  • -53kPa
