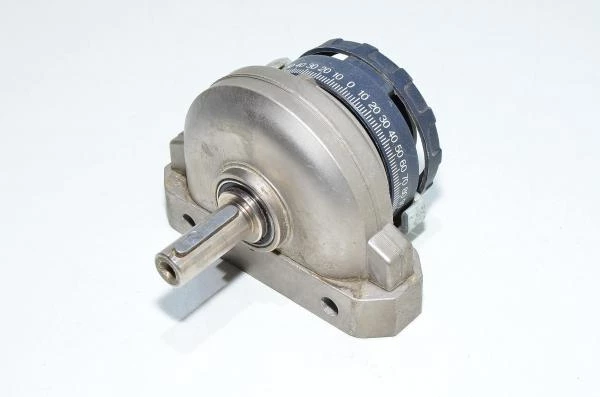

Festo DSR-25-180-P 11911 semi-rotary drive, with keyway drive shaft

  • Festo DSR-25-180-P 11911 semi-rotary drive, with keyway drive shaft
    Festo DSR-25-180-P 11911 semi-rotary drive, with keyway drive shaft Festo DSR-25-180-P 11911 semi-rotary drive, with keyway drive shaft Festo DSR-25-180-P 11911 semi-rotary drive, with keyway drive shaft
  • Manufacturer:
    Festo
    Festo
  • Model:
    Festo DSR-25-180-P 11911
  • Dimension:
    98 x 68 x 95 mm
  • Weight:
    522 g
  • Availability: 3pcs
  • Condition: Used

  • Price Including VAT: 186€

  • Ex Tax: 150€
pcs


Make an offer

0 reviews / Write a review

In these semi-rotary drives, the force is directly transmitted backlash-free to the drive shaft via a rotary vane. The swivel angle is infinitely adjustable from 0...184° (DSR-10 and DSR-12: 0...181°). The adjustable stop system is separate from the rotary vane so that any forces which occur are absorbed by the stop blocks. The impacts are cushioned at the end positions by flexible plastic plates.

Download Festo DSR/DSRL semi-rotary drives technical datasheet

Pneumatics
Air connection M5x0,8
Cylinder bore size 25mm
Max working pressure 0,8MPa (8bar)
Min working pressure 0,2MPa (2bar)
Operating medium Compressed air, lubed or non-lube
Operating temperature -10...60°C
Operation Rotary vane
Rotation angle 0-184°
Shock absorption Absorption pads

Write a review

Please login or register to review

Tags: rotary actuator, DSR-series, semi-rotary drive, rotary act, M5, 180°, Festo, 16mm
