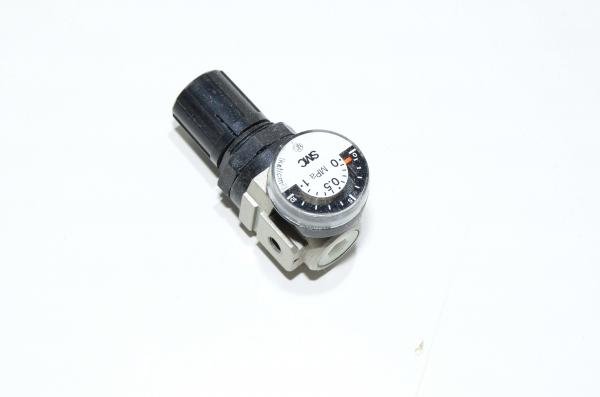

SMC AR1000-M5 + G27-10-R1 compressed air regulator unit with pressure meter

Modular regulator unit to be used with filters and valves or just as is for special applications.

Regulator unit technical details:

• Ports:
  • M5x0.8
• Operating medium:
  • Air
• Proof pressure:
  • 1.5MPa
• Max operating pressure:
  • 1.0MPa
• Set pressure:
  • 0.05...0.7MPa
• Pressure gauge port:
  • Rc 1/16"
• Relief pressure:
  • Set pressure +0.05MPa (at relief flow rate of 0.1l/min ANR)
• Operating temperature:
  • -5...60°C (no freezing)
• Construction:
  • Relieving type
• Max flow rate:
  • 150l/min ANR
• Pressure gauge which is mounted into regulator:
  • G27-10-R1
    • Meter readings 0...10MPa

Download SMC AR series regulator units datasheet
