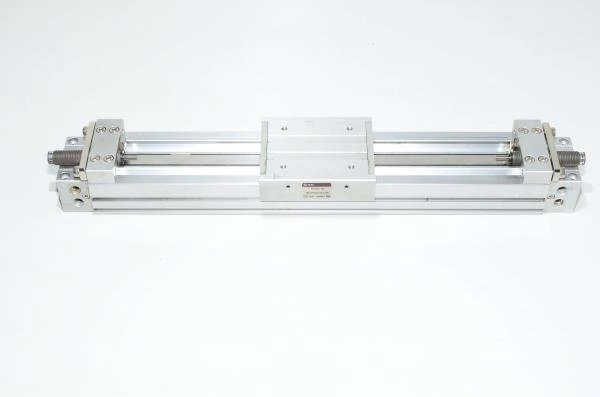

SMC MY1M25-250 guided mechanical joint rodless cylinder with shock absorbers and stroke adjustment slide bearing type

  • SMC MY1M25-250 guided mechanical joint rodless cylinder with shock absorbers and stroke adjustment slide bearing type
  • Manufacturer:
    SMC
    SMC
  • Model:
    SMC MY1M25-250
  • Dimension:
    447 x 71 x 58 mm
  • Weight:
    3249 g
  • Availability: Out of Stock
  • Condition: Used

  • Price Including VAT: 156,88€

  • Ex Tax: 125€
pcs


Make an offer

0 reviews / Write a review

Linear rodless air cylinder or linear rodless actuators or pneumatic linear drive. All of these names represent the same device.

A rodless air cylinder differs from a basic air cylinder in that no piston rod extends outside the cylinder body. Instead, the internal piston is connected to an external carriage, by means of a magnetic or mechanical coupling system. Rodless air cylinders are ideal for long stroke applications because they are unaffected by rod overhang, bending, piston binding, and uneven seal wear, and for use in confined areas where space is a premium. This means high repeatability without the need of building external linear guides.

Download SMC MY1 series mechnically jointed rodless cylinders technical datasheet

Pneumatics
Air connection G1/8
Cylinder bore size 25mm
Filtration rate min 40µm
Guide type Guide with slide bearings
Magnetic piston Yes
Max working pressure 0,82MPa (8.2bar)
Min working pressure 0,15MPa (1.5bar)
Operating medium Compressed air non-lube
Operating temperature 5...60C
Operation Double acting
Piston speed 100...1000mm/s
Shock absorption Adjustable air cushion and SMC RB1412 shock absorbers
Stroke 250mm adjustable
