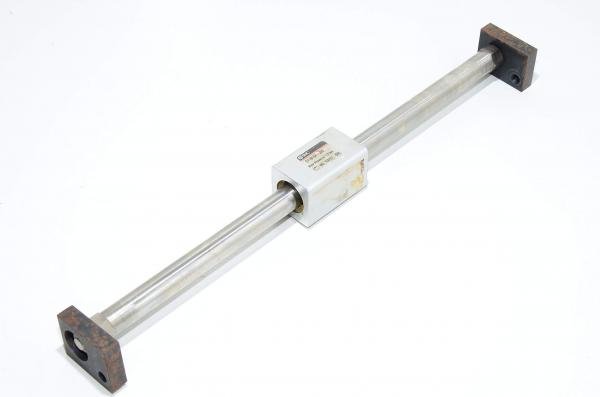

SMC CY1B15H-300 basic type magnetically coupled rodless cylinder + mounting brackets
- Manufacturer:
SMC - Model:
SMC CY1B15H-200 + mounting brackets - Dimension:
407 x 35 x 45 mm - Weight:
616 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 145.58€
- Ex Tax: 116€
A rodless air cylinder differs from a basic air cylinder in that no piston rod extends outside the cylinder body. Instead, the internal piston is connected to an external carriage, by means of a magnetic or mechanical coupling system. Rodless air cylinders are ideal for long stroke applications because they are unaffected by rod overhang, bending, piston binding, and uneven seal wear, and for use in confined areas where space is a premium. This means high repeatability without the need of building external linear guides.
| Pneumatics | |
| Air connection | M5x0.8 |
| Cylinder bore size | 15mm |
| Magnetic piston | Yes (with 53.9N holding force) |
| Max working pressure | 0,7MPa (7bar) |
| Min working pressure | 0,18MPa (1.2bar) |
| Operating medium | Compressed air non-lube |
| Operating temperature | 5...60C |
| Operation | Double acting |
| Piston speed | 50...400mm/s |
| Shock absorption | Rubber bumpers on both ends |
| Stroke | 300mm |
| Stroke length tolerance | 0/+1.4 |
Tags: CY1B-series, 15mm, rodless actuator, rodless air cylinder, M5, 300mm, SMC, rodless, actuator, cylinder, CY1-series
