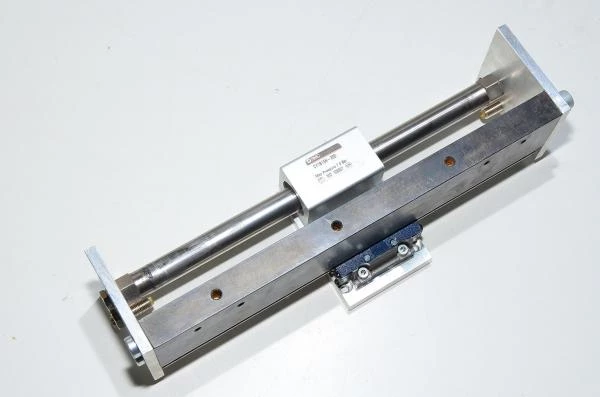

SMC CY1B15H-200 basic type magnetically coupled rodless cylinder + 15mm square linear guide rail assembly
- Manufacturer:
SMC - Model:
SMC CY1B15H-200 + linear guide rail assembly + stoppers - Dimension:
316 x 93 x 81 mm - Weight:
3284 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 181.98€
- Ex Tax: 145€
A rodless air cylinder differs from a basic air cylinder in that no piston rod extends outside the cylinder body. Instead, the internal piston is connected to an external carriage, by means of a magnetic or mechanical coupling system. Rodless air cylinders are ideal for long stroke applications because they are unaffected by rod overhang, bending, piston binding, and uneven seal wear, and for use in confined areas where space is a premium. This means high repeatability without the need of building external linear guides.
This assembly has a guide rail made from 15mm square linear guide rail with ball bearings and it is equipped with polyurethane stoppers.
| Pneumatics | |
| Air connection | M5x0.8 |
| Cylinder bore size | 15mm |
| Magnetic piston | Yes (with 53.9N holding force) |
| Max working pressure | 0,7MPa (7bar) |
| Min working pressure | 0,18MPa (1.2bar) |
| Operating medium | Compressed air non-lube |
| Operating temperature | 5...60C |
| Operation | Double acting |
| Piston speed | 50...400mm/s |
| Shock absorption | Rubber bumpers on both ends |
| Stroke | 200mm |
| Stroke length tolerance | 0/+1.0 |
Tags: rodless, actuator, cylinder, CY1-series, SMC, 200mm, M5, 15mm, CY1B-series, rodless actuator, rodless air cylinder, linear guide rail, linear rail, ball bearings
