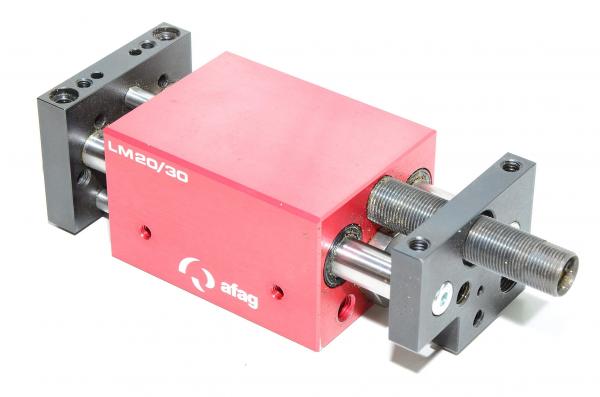

Afag LM20/30 11001720 linear module slide unit with 1x shock absorbers and no stop screws
- Manufacturer:
Afag - Model:
Afag LM20/30 11001720 + 1x shoks and no stopscrews - Dimension:
169 x 60 x 47 mm - Weight:
1160 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 351.40€
- Ex Tax: 280€
Linear module from Afag. This unit can be combined with other Afag modules to archieve desired end result or if needed unit can be used as is in some other aplication. Linear drive is made with 2x guide shafts and single piston. This unit has 1x SD M14x1-1 shock absorbers installed.
Download Afag CS, LM and PS modules technical overview sheet
| Pneumatics | |
| Air connection | M5x0.8 |
| Cylinder bore size | 20mm |
| Filtration rate | 10...40µm |
| Guide type | Guide with ball bearings |
| Magnetic piston | No |
| Max working pressure | 0,8MPa (8bar) |
| Min working pressure | 0,4MPa (4bar) |
| Operating medium | Compressed air non-lube |
| Operating temperature | 0...50°C |
| Operation | Double acting |
| Repeatin precision | +/-0.01mm |
| Shock absorption | Stop screw AS 08/40 (sold separately) Shock absorber SD M14x1-1 (15mm traverse) |
| Stroke | 30mm |
Tags: drive, actuator, cylinder, M14x1, Afag, SD-series, module, linear module, driver, linear drive, 20mm, M5, 30mm, linear transfer unit, linear driver, LM-series
