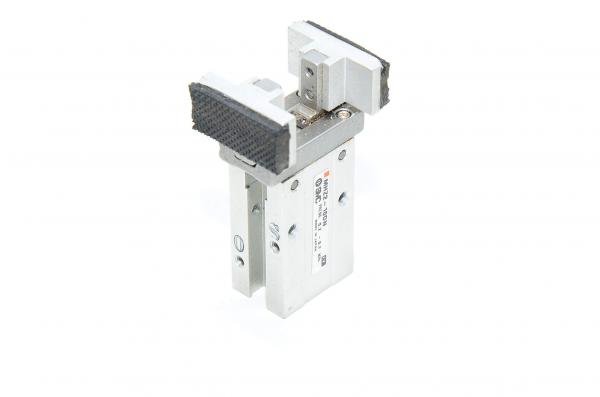

SMC MHZ2-10DN standard type double acting 2-finger linear air gripper with narrow grip + grippers with rubber pads
- Manufacturer:
SMC - Model:
SMC MHZ2-10DN + grippes with rubber pads - Dimension:
57 x 32 x 25 mm - Weight:
62 g - Availability: 2pcs
- Condition: Used
-
Price Including VAT: 94.13€
- Ex Tax: 75€
SMC MHZ series parallel type air gripper for demanding picking applications. This gripper family has integral linear ball bearing guide that will increase it´s performance, rigidity and repeatability even up to +/-0.01mm. Grippers come with compact low profile housing, with multiple different mounting options and different finger options. Mounting can be performed in five ways from three dimensions. MHZ series is designed in a way that no guide protrusion in direction of body thickness is archived.
| Pneumatics | |
| Air connection | M3 x 0,5 |
| Cylinder bore size | 10mm |
| Filtration rate | 5µm |
| Gripper type | 2 finger |
| Gripping power to the inner surface | 17N |
| Gripping power to the outer surface | 9,8N |
| Guide type | Ball guided |
| Max operation frequency | 180 strokes/min |
| Max working pressure | 0,7MPa (7bar) |
| Min working pressure | 0,2MPa (2bar) |
| Operating medium | Compressed air, lubed or non-lube |
| Operating temperature | -10...60C |
| Operation | Double acting |
| Stroke | 4mm |
Tags: MHZ, gripper, pneumatic gripper, SMC, double acting, 2-finger, linear, ball bearing, linear guide, 10mm
