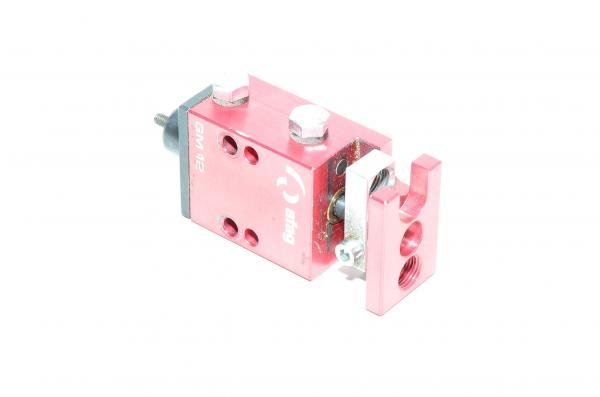

Afag GM 12 actuator for gripper module with out stop screws

Manufacturer:

Afag
Model:
Afag GM12
Dimension:
73 x 35 x 20 mm
Weight:
101 g

Availability: Out of Stock
Condition: Used

Price Including VAT: 125,50€
Ex Tax: 100€

Quantity

pcs

Make an offer

0 reviews / Write a review

Actuator module made for gripper modules made by Afag. This unit can be combined with other Afag modules to archieve desired end result or if needed unit can be used as is in some other aplication.

Download Afag GMQ 12 and GMQ 12-RM 12 Gripper modules maintenance instructions and module information datasheets

Download Afag RE, GMQ, and RME modules technical overview sheet

Pneumatics
Air connection	M5x0.8
Cylinder bore size	12mm
Filtration rate	5µm non lube air, 40µm lubed air
Magnetic piston	No
Max working pressure	0,8MPa (8bar)
Min working pressure	0,4MPa (4bar)
Operating medium	Compressed air, lubed or non-lube
Operating temperature	0...50°C
Operation	Double acting.
Shock absorption	Stop screw AS 08/15 or AS 08/25 (sold separately). M8x1/25 stop pin can also be used. Can be used also with SD 08/06 shock absorbers.
Stroke	6mm

Tags: gripper, gripper module, 12mm, Afag, GM-series, double acting, M5
