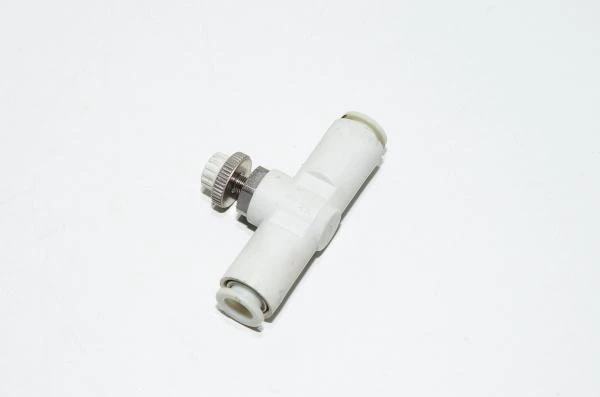

SMC AS2051F-08 in-line type one-way restrictor / speed controller with 8mm quick connectors for tube
- Manufacturer:
SMC - Model:
SMC AS2051F-08 - Dimension:
60 x 16 x 37 mm - Weight:
24 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 14,12€
- Ex Tax: 11,25€
Speed controller valve allows free flow in one direction and provides reduced flow into other direction. For example this allows user to control the speed of cylinder in one direction. The amount of restriction can be adjusted by simply rotating the a needle valve.
- Provides metered flow control in one direction
- Built-in check valve allows free flow in the other direction
- Straight type is designed to be mounted as in-line component kinda like in between tube.
- Lockring can be used to lock adjustment / preventing accidental the loss of needle.
Download SMC AS, KE, AQ, EAK, AKH, ALB, EASS series flow control equipment technical datasheet
| Pneumatic flow controllers | |
| Control type | one-way restrictor |
| Flow rate | 460l/min (ANR) / 0.5MPa & 20°C |
| Max operating pressure | 1.0MPa (Proofing pressure 1.5MPa) |
| Min operating pressure | 0.1MPa |
| Number of needle valve rotations | 10 |
| Operating fluid | Air |
| Operating temperature | -5...60°C |
| Quick connector size | 8mm-8mm |
Tags: one-way, valve, restrictor, speed controller, AS-series, SMC, meter out, flow control, control, speed adjust, adjuster, needle valve, check valve
