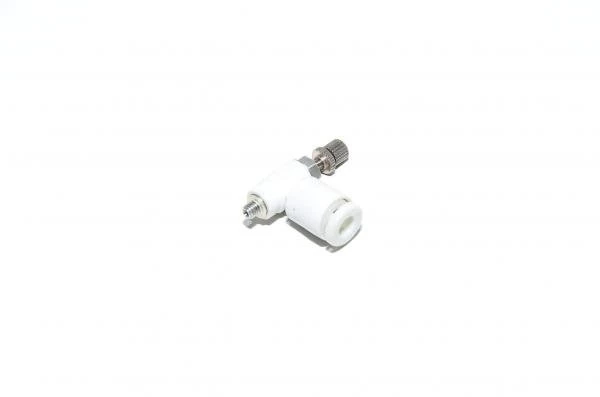

SMC AS1201F-M3-04 elbow type meter-out speed controller with M3x0.5 threaded port and 4mm quick connector for tube

  • SMC AS1201F-M3-04 elbow type meter-out speed controller with M3x0.5 threaded port and 4mm quick connector for tube
  • Manufacturer:
    SMC
    SMC
  • Model:
    SMC AS1201F-M3-04
  • Dimension:
    20 x 10 x 27 mm
  • Weight:
    4 g
  • Availability: 33pcs
  • Condition: Used

  • Price Including VAT: 7,66€

  • Ex Tax: 6,10€
pcs


Make an offer

0 reviews / Write a review

Speed controller valve allows free flow in one direction and provides reduced flow into other direction. For example this allows user to control the speed of cylinder in one direction. The amount of restriction can be adjusted by simply rotating the a needle valve.

  • Provides metered flow control in one direction
  • Built-in check valve allows free flow in the other direction
  • Elbow type designed to be mounted in cylinder air ports
  • Can be rotated 360° after installation
  • Lockring can be used to lock adjustment / preventing accidental the loss of needle.

Download SMC AS, KE, AQ, EAK, AKH, ALB, EASS series flow control equipment technical datasheet

Pneumatic flow controllers
Control type Meter-out
Flow rate 20l/min (ANR) / 0.5MPa & 20°C
Max operating pressure 1.0MPa (Proofing pressure 1.5MPa)
Min operating pressure 0.1MPa
Number of needle valve rotations 10
Operating fluid Air
Operating temperature -5...60°C
Quick connector size 6mm
Threaded connector type M3x0.5
