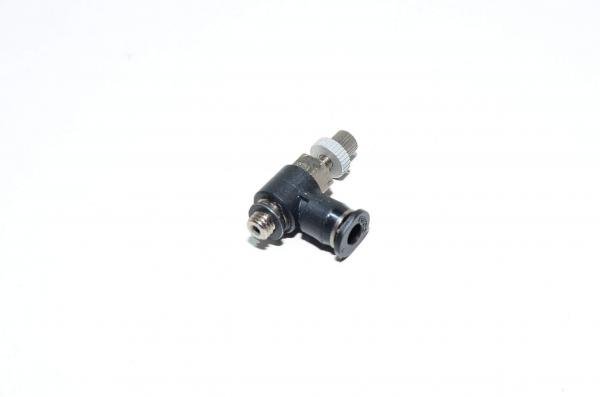

Pisco JSC6-M5MA elbow mini type meter-out speed controller with M5x0.8 threaded port and 6mm quick connector for tube
- Manufacturer:
Pisco - Model:
Pisco JSC6-M5MA - Dimension:
23 x 11 x 30 mm - Weight:
8 g - Availability: 4pcs
- Condition: Used
-
Price Including VAT: 6,65€
- Ex Tax: 5,30€
Speed controller valve allows free flow in one direction and provides reduced flow into other direction. For example this allows user to control the speed of cylinder in one direction. The amount of restriction can be adjusted by simply rotating the a needle valve.
- Provides metered flow control in one direction
- Built-in check valve allows free flow in the other direction
- Elbow type designed to be mounted in cylinder air ports
- Can be rotated 360° after installation
- Lockring can be used to lock adjustment / preventing accidental the loss of needle.
| Pneumatic flow controllers | |
| Control type | Meter-out |
| Flow rate | 71l/min (ANR) / 0.6MPa |
| Max operating pressure | 0.9MPa |
| Min operating pressure | 0.05MPa |
| Number of needle valve rotations | 8 |
| Operating fluid | Air |
| Operating temperature | 0...60°C |
| Quick connector size | 6mm |
| Threaded connector type | M5x0.8 |
Tags: restrictor, valve, one-way, control, flow control, Pisco, miniature, mini, JSC-series, meter out, speed adjust, adjuster, speed controller, needle valve, check valve
