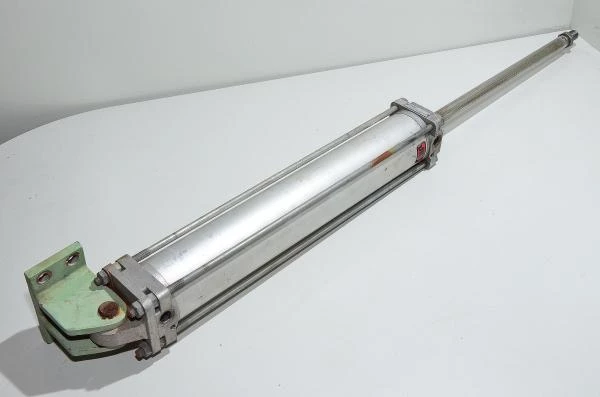

Pimatic CR 80-420 double-acting ISO 6431 standard cylinder + Rear trunion mount

Quantity

pcs

Make an offer

Multipurpose basic standard cylinder from Pimatic.

This datasheet is not for this cylinder series, but suppose it could be could be used as a guideline for this one.

Pneumatics
Air connection	R3/8"
Cylinder bore size	80mm
Filtration rate	min 40µm
Magnetic piston	Yes
Max working pressure	1.0MPa (10bar)
Min working pressure	0,15MPa (1,5bar)
Operating medium	Compressed air, lubed or non-lube
Operating temperature	-30...80C
Operation	Double acting
Rod connection	M20x1.5
Shock absorption	Adjustable end-position cushioning Rear end cushioning malfunctions!
Stroke	420mm

Price Including VAT: 188,25€
