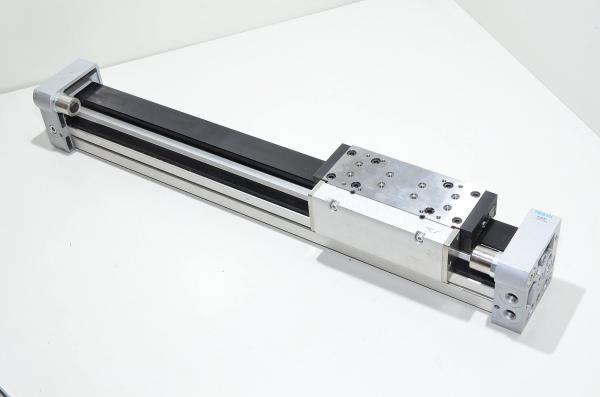

Festo rodless cylinder DGC-40-400-KF-PPV-A 532449

Festo DGC-40-400-KF-PPV-A  is a versatile and space-efficient rodless cylinder designed for various automation and industrial applications, providing precise and reliable movement control with a stroke length of 400 mm and a bore size of 40 mm. The Rodless cylinder have the piston inside the cylinder and move a carriage along the cylinder body. This design allows for longer strokes without requiring additional space for a piston rod. Adjustable cushioning allows for smooth operation and adaptability to different load conditions.

Cylinder technical details:

• Series:
  • DGC:
    • Linear drive
• Piston diameter:
  • 40mm
• Stroke lenght:
  • 400mm
• Stroke:
  • 1...8500
• Operating pressure:
  • 0.15...0.8Mpa
• Operating temperature:
  • –10...60°C
• Pneumatic connection:
  • G1/4
• Max. speed:
  • 29.5m/s
• Cushioning:
  • Pneumatic cushioning, adjustable at both ends
• Guide:
  • Recirculating ball bearing guide
• Theoretical force at 0.6 MPa (6 bar , 8 psi)
  • 754N
• Position sensing:
  • For proximity sensor
• Compressed air connection:
  • At the right end or at both ends
• Lubrication:
  • Standard
• Slide:
  • Standard
• Additional slide left:
  • None
• Additional slide right:
  • None
• Clamping unit:
  • None
• Actuation type:
  • None
• Foot mounting:
  • None
• Profile mounting:
  • None
• Mechanical end position limitation:
  • None

Guide characteristics:

• Fy:
  • 6890N
• Fz:
  • 6890N
• Mx:
  • 144Nm
• My:
  • 380Nm
• Mz:
  • 380Nm
