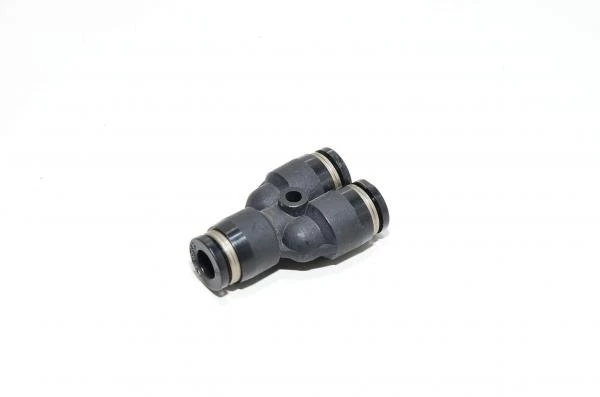

Pisco PY6 Union 6mm Y-connector / Y-branch / Y-splitter quick fitting connector

Manufacturer:

Pisco
Model:
Pisco PY-6
Dimension:
38 x 13 x 25 mm
Weight:
11 g

Availability: 20pcs
Condition: Used

Price Including VAT: 3.14€
Ex Tax: 2.50€

Quantity

pcs

Make an offer

Quick connector / one touch fitting / push in fitting / quick fitting or what ever you may use to address this vital piece of tubing connector. This connector can be used with air or water. Combine these and some other connectors as needed to make your pneumatic system come alive and fully functional.

Pisco standard type is coming in a wide variety of models, the Tube Fitting standard type is a quick-fitting joint for use in pneumatic piping.

Patented design of Lock-claws makes easy connection and disconnection of tubes.

Pneumatic connectors
Materials	Body: Polybuteneterephthalate (PBT) Chuck: Stainless steel O-ring: NBR Collet, release button: Polyacetal (POM) Gasket: NBR
Max pressure	-100kPa...1.0MPa 0...0.32MPa when using water (no water hammer is allowed)
Operating temperature range	0...60°C
Quick connectors sizes	6mm-6mm-6mm
Suitable tubes	PAN, PEN, PUN, PUN-H, PUN-E
