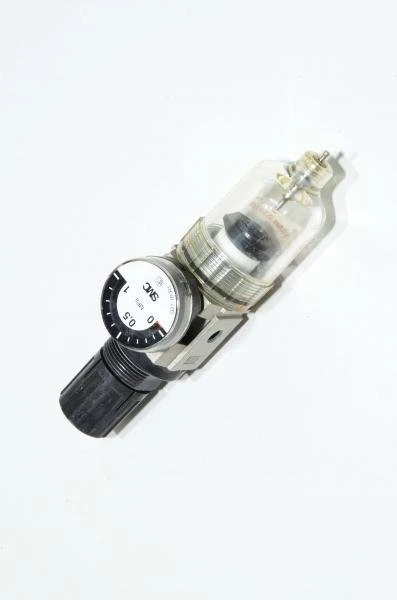

SMC AW1000-M5 + G27-10-R1 compressed air filter regulator unit with pressure meter

Small assembly which can be installed into pneumatic device's input side which does not require a lot of air. This allows you to regulate (in other words to adjust desired operating pressure) and filter your air for your device.

Filter regulator unit technical details:

• Ports:
  • M5x0.8
• Operating medium:
  • Air
• Proof pressure:
  • 1.5MPa
• Max operating pressure:
  • 1.0MPa
• Set pressure:
  • 0.05...0.7MPa
• Pressure gauge port:
  • Rc 1/16"
• Relief pressure:
  • Set pressure +0.05MPa (at relief flow rate of 0.1l/min ANR)
• Operating temperature:
  • -5...60°C (no freezing)
• Nominal filtration rate:
  • 5µm
• Bowl capacity:
  • 2.5cm³
• Bowl material:
  • Polycarbonate
• Construction:
  • Relieving type
• Max flow rate:
  • 150l/min ANR
• Pressure gauge which is mounted into regulator:
  • G27-10-R1
    • Meter readings 0...10MPa

Download SMC AW series filter regulator units datasheet
