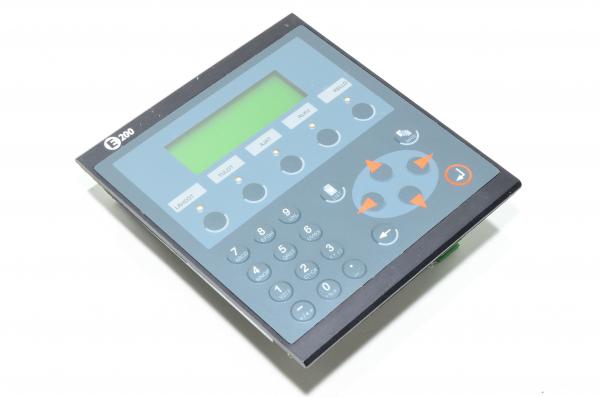

Beijer Electronics / Mitsubishi Electric MAC/MTA E200 type 02800B key oriented monochrome graphical digital 20x4 LCD HMI operator interface

The MAC E200 has a text display and programmable function keys with freely definable labels and alternating function assignment. LEDs indicate the process status. Recipes, passwords, texts, alarms, and changes can be entered via input keys. The MAC E200 features a PLC interface and an additional printer port.

Multi-language support

All the MAC E units (from OS v. 6 upwards) support multi-language applications created with the programming software. These applications allow the operators to select the user interface language they wish to use. Unicode is also supported.

Dual driver support

All MAC E control units (except the MAC E50) can access different types of systems simultaneously. This functionality is supported both on the standard RS232C and RS422 ports and via the extended Profibus/DP and Ethernet interfaces. For example, you can write data words from a PLC directly into the parameter settings of a frequency inverter.

Technical features:

• Operating temperature:
  • 0...50°C
• Power supply:
  • 24VDC
  • 200mA
• Display:
  • Monochrome LCD
  • Back-lit
• Resolution characters x rows (pixels)
  • 20x4
• Supported PLCs
  • All Melsec PLC systems plus third party products
• Function keys:
  • 5x programmable membrane buttons
  • 20x membrane buttons for navigation
• Indicators:
  • 5x LED (2x colors)
  • There is a slot under screen for paper strips which indicate what each LED / button represents
• Multi-user support (stations per segment):
  • Max 30 (option)
• Connections:
  • RS232C
  • RS422
• Real time clock:
  • Integrated
• Protection rating:
  • IP65
