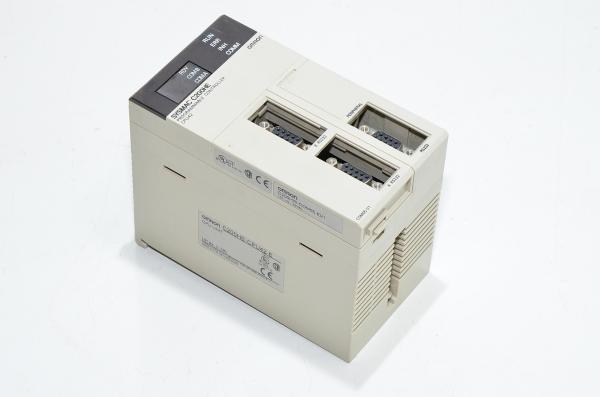

Omron Sysmac C200HE-CPU42-E programmable controller, CPU unit

Omron C200HE series programmable logics are so called rack mountable models. All of the PLC components are mounted into a special purpose backplane which can be then mounted for example into the electrical cabinet. Omron C200HE series is compatible with older C200H and C200HS series peripherals.

Omron C200HE-CPU42-E CPU unit technical details:

• Program capacity:
  • 7200 words
• DM area:
  • 6000 words
• EM capacity:
  • None
• Max I/O capacity:
  • Max 880x I/O points
    • When used with expansion modules and expansion backplanes. Max 2 expansion panels.
• Built-in inputs:
  • No
• Built-in 3x RS-232 ports:
  • Yes
• Support of inner boards:
  • Yes
• Support of controller link unit:
  • Yes
• Battery backup:
  • Yes (Depending upon unit battery may require changing)
• Programming language:
  • Ladder logic
• Mounting:
  • Into Omron's C200H-BC series backplanes

This unit is compatible with older C200H and C200HS series accessories such as I/O modules.
