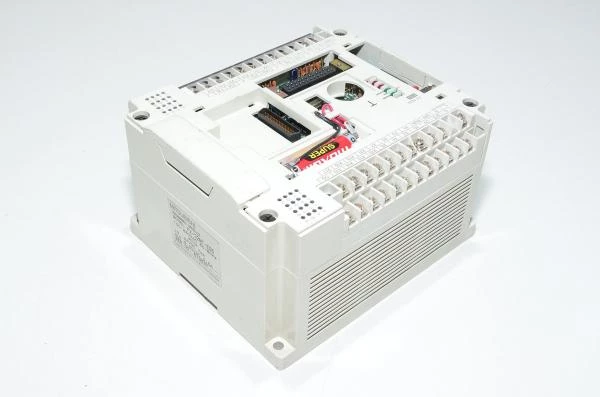

Mitsubishi Melsec FX-32MT-ESS programmable controller, CPU unit

Rich features and flexible system configuration in a compact size. The MELSEC-F series PLC incorporates power supply, CPU, and I/Os into a single compact unit.
Meets the needs of a variety of user applications with options for I/O, analog I/O, positioning units and data communication modules.

Mitsubishi Melsec FX-32MT-ESS unit technical details:

• Unit description:
  • CPU Unit with 32x I/O and power supply
• Control system:
  • Repeated operation (using stored program)
• Data register:
  • 1K words
• Operating time:
  • Basic instruction:
    • 0.48µs
  • Applied instruction:
    • 10-100µs
• Max I/O capacity:
  • 256x points
• Operating voltage:
  • 100...240VAC
• Power consumption:
  • 40VA
• Built-in inputs:
  • 16x inputs NPN/PNP
  • 24VDC/7mA
• Input sensitivity:
  • OFF-> ON:
    • >4mA
  • ON->OFF:
    • <1.5mA
• Built-in outputs:
  • 16x transistor outputs PNP 5...30VDC
  • 0.5A/point
  • 0.8A/common point
• Built-in communication ports:
  • No
• Support of inner boards:
  • Yes
• Battery backup:
  • Yes (Depending upon unit battery may require changing)
• Programming language:
  • Language dedicated to sequence control. Relay symbol type and logic symbolic language.
• Mounting:
  • DIN rail
  • 4x4mm holes at the corners

There might not be enough hole blanking plates for all units. Most complete units are sold first.

Download Mitsubishi Melsec FX-32MR-ES programmable logic controller technical specification datasheet

Download Mitsubishi Melsec FX series programmable logic controllers installation manual

Download Mitsubishi Melsec F series programmable logics FXCPU structured programming manual
