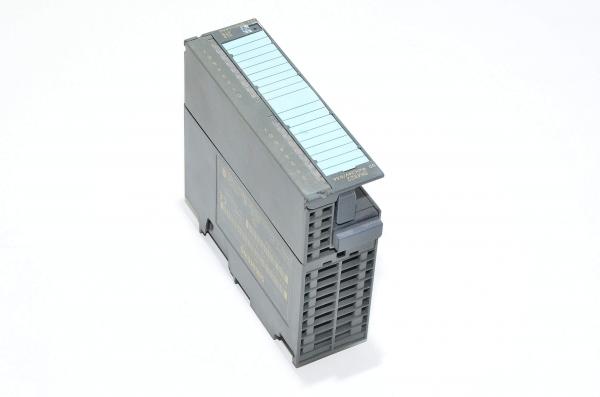

Siemens Simatic S7-300 SM322 1P6ES7 322-1BH01-0AA0 digital 16x output module

Siemens Simatic S7-300 series I/O module for extending your connection capabilities.

Module's technical details:

• Number of outputs:
  • 16
• Load voltage L+/L1
  • 24VDC (20.4...28.8VDC)
• Output voltage at 1:
  • L+ -0.8VDC
• Electrical isolation to backplane-bus
  • Optocoupler in groups of 8
• Output current:
  • At "1" signal and rated value at 60°C
    • 0.5A
    • Minimum current:
      • 5mA
  • At "0" signal:
    • 0.5mA
  • Total current of the outputs:
    • Up to 40°C
      • 4A
    • Up to 60°C (horizontal mounting)
      • 3A
  • Lamp load max:
    • 5W
• Switching frequency of outputs:
  • Resistive load, max:
    • 100Hz
  • Inductive loads, max:
    • 0.5Hz
  • Lamp load, max:
    • 100Hz

Download Siemens Simatic S7-300 series programmable logics technical datasheet
