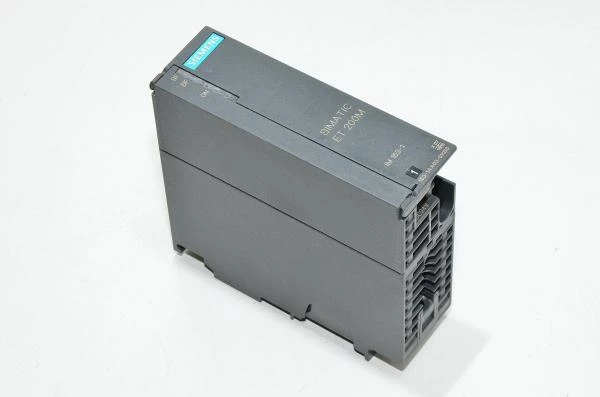

Siemens Simatic IM153-1 6ES7153-1AA03-0XB0 Profibus DP interface module

IM153-1 6ES7153-1AA03-0XB0 is a Profibus DP Interface module in the Simatic ET 200M series. It serves as a connection interface for distributed I/O systems, enabling communication between the central control unit like an S7-300 or S7-400 CPU and up to 8 I/O modules on a Profibus DP network. This module is ideal for systems requiring distributed control while maintaining flexibility and reliability.

Module's technical details:

• Supply voltage
  • 24VDC
• Input current:
  • Max. current consumption:
    • 350mA at 24VDC
• Inrush current:
  • 2,5A
• Rated output voltage:
  • 5V
• Max. output current:
  • 1A
• Power loss:
  • 3W
• Addressing volume:
  • Inputs:
    • 128 bytes
  • Outputs:
    • 128 bytes
• Hardware configuration:
  • Max. number of modules per DP slave interface:
    • 8
• Transmission procedure:
  • RS485
• Max. transmission rate:
  • 12Mbit/s
• Protocols:
  • Profibus DP to EN 50170
• Isolation voltage:
  • 500V
• IP protection:
  • IP20
• Operating temperature:
  • 0...+60°C
• Max. installation altitude above sea level:
  • 3000m
• Configuration software:
  • STEP 7
  • Com Profibus
  • Non-Siemens tools via GSD file

Download Siemens Simatic IM153-1 6ES7153-1AA03-0XB0 Profibus DP interface module technical datasheet
