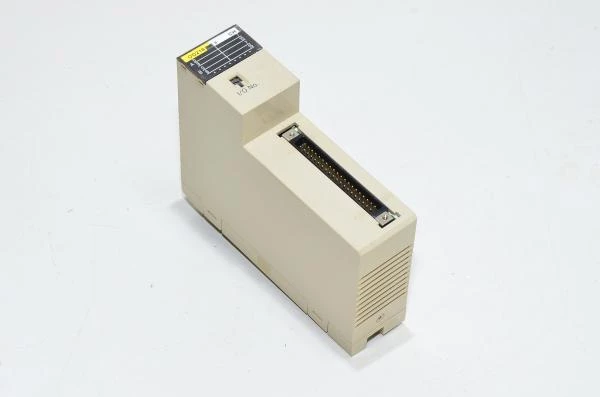

Omron Sysmac C200H-OD218 high density output module with 32x sourcing transistor outputs 24VDC

C200H-OD218 is a digital high density output module designed for the C200H PLC series, commonly used in industrial automation. It provides 32 input points for 24VDC signals and supports sourcing-type transistor outputs, which means it typically transmit signals from connected devices.

Omron C200H series programmable logics are so called rack mountable models. All of the PLC components are mounted into a special purpose backplane which can be then mounted for example into the electrical cabinet. Older C200H series is compatible with newer C200HS series peripherals.

Omron C200H-OD218 output module technical details:

• Module type:
  • 32x point output module with with 32x sourcing transistor outputs 24VDC.
• Built-in outputs:
  • 32x sinking outputs (common -)
    • Max. 24VDC 0,1mA
• Operating voltage:
  • On:
    • Min. 4,5VDC 16mA
  • Off:
    • Max. 26,4VDC 100mA
• Output response time:
  • On:
    • Max. 0,1ms
  • Off:
    • Max. 0,4ms
• I/O connection:
  • 40pin connector
• Mounting:
  • Into Omron's C200H-BC series backplanes

This unit is compatible with older C200H and C200HS series CPU's.

Download Omron C200H-series I/O modules technical datasheet

Download Omron C200H series programmable controllers technical datasheet
