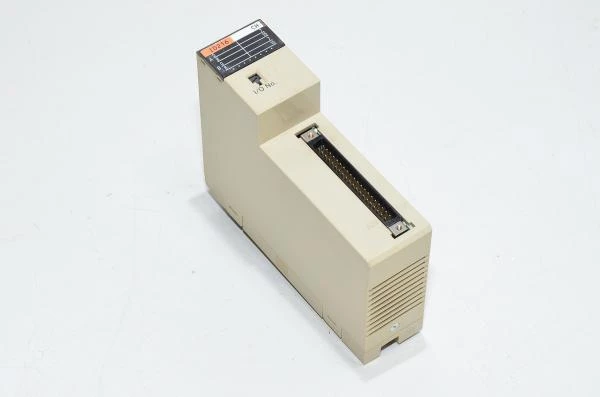

Omron Sysmac C200H-ID216 high density input module with 32x sinking 24VDC inputs

C200H-ID216 is a digital high density input module designed for the C200H PLC series, commonly used in industrial automation. It provides 32 input points for 24VDC signals and supports sink-type inputs, which means it typically receives signals from connected devices.

Omron C200H series programmable logics are so called rack mountable models. All of the PLC components are mounted into a special purpose backplane which can be then mounted for example into the electrical cabinet. Older C200H serie is compatible with newer C200HS series peripherals.

Omron C200H-ID216 input module technical details:

• Module type:
  • 32x point input module with 32x sinking 24VDC inputs.
• Built-in inputs:
  • 32x sinking inputs (common -)
    • Max. 24VDC 4,1mA
• Operating voltage:
  • On:
    • Min. 14,4VDC
  • Off:
    • Max. 5,0VDC
• Input response time:
  • On:
    • Max.1,0ms
  • Off:
    • Max.1,0ms
• I/O connection:
  • 40pin connector
• Mounting:
  • Into Omron's C200H-BC series backplanes

This unit is compatible with newer C200HS series CPU's.
