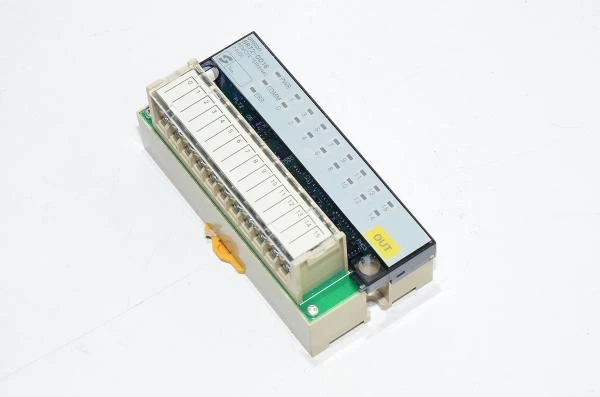

Omron SRT2-OD16 transistor remote terminal 1A 24VDC 16 terminals *new*

SRT2 models support both high-speed communications (750 kbps) and long-distance communications (500 m) systems, switch selected. Two independent power supplies can be used because the I/O terminals are isolated from the internal circuits.

Remote terminal technical details:

• Communications power supply voltage:
  • 14 to 26.4VDC
• I/O power supply voltage:
  • 24VDC +10%/--15%
• I/O power supply current:
  • 1A max.
• Current consumption:
  • 50mA max. at 24VDC
• I/O points 16
  • Communications type:
    • High-speed:
      • Output NPN (- common)
    • High-speed and long-distance:
      • Output NPN (- common)
• Inputs:
  • Input current:
    • 6mA max./point
  • ON delay time:
    • 1.5ms max.
  • OFF delay time:
    • 1.5ms max.
  • ON voltage:
    • 15VDC min. between each input terminal and V
  • OFF voltage:
    • 5VDC max. between each input terminal and V
  • OFF current:
    • 1mAmax.
  • Insulation method:
    • Photocoupler
  • Input indicators:
    • LED (yellow)
• Outputs:
  • Rated output current:
    • 0.3A/point
  • Residual voltage:
    • 0.6V max.
  • Leakage current:
    • 0.1mA max.
  • Insulation method:
    • Photocoupler
  • Output indicators:
    • LED (yellow)
• Connection method:
  • Multi-drop method and T-branch method
  • Secondary branches cannot be connected to T-branch lines.
• Connecting Units:
  • 4-point and 8-point Terminals: 16 Input Terminals and 16 Output Terminals per Master
  • 16-point Terminals: 8 Input Terminals and 8 Output Terminals per Master
• Dielectric strength:
  • 500VAC for 1 minute (1mA sensing current between insulated circuits)
• Noise immunity:
  • Power supply normal:
    • ±600V for 10 minutes with a pulse width of 100 ns to 1µs
  • Power supply common:
    • ±1,500V for 10 minutes with a pulse width of 100 ns to 1µs
• Vibration resistance:
  • 10 to 55Hz, 1.5--mm double amplitude
• Shock resistance:
  • Malfunction: 200 m/s2
  • Destruction: 300 m/s2
• Ambient temperature:
  • Operating: 0°C to 55°C (32°F to 131°F) with no icing or condensation
• Ambient humidity:
  • Operating: 35% to 85% RH
