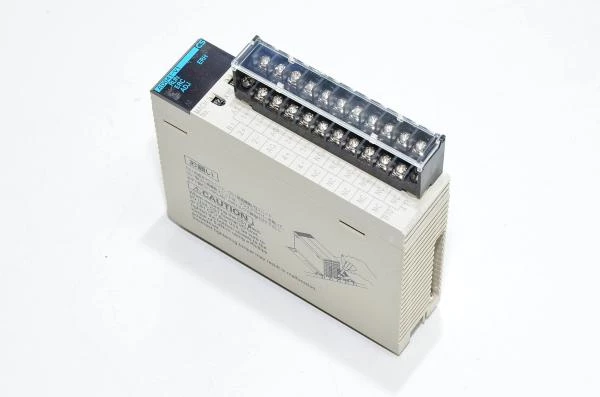

Omron CS1W-AD041-V1 analog input unit

CS1W-AD041-V1 is an analog input unit designed for the CS1 series PLCs. It allows analog signals to be converted into digital data for processing by the PLC. It's ideal for applications requiring the conversion of real-world analog signals into digital data for further processing in the PLC.

Analog input unit technical details:

• Power consumption:
  • 120mA max. at 5VDC
  • 90mA max. at 26VDC
• Special I/O Unit:
  • Inputs:
    • 21 pts
  • Signal range:
    • Voltages:
      • 1...5V
      • 0...5V
      • 0...10V
      • –10...10V
    • Currents:
      • 4...20mA
• Input impedance:
  • Voltage:
    • 1MΩ
  • Current:
    • 250Ω
• Resolution:
  • 1/4000 (default) or 1/8000 (selectable)
• Conversion speed:
  • 1.0ms/point (default), or 250μs/point (selectable)
• Overall accuracy (at 23°C):
  • Voltage: ±0,2%​​​​​​​
  • Current: ±0,4%
• Overall accuracy (0...55°C):
  • Voltage: ±0,4%
  • Current: ±0,6%​​​​​​​
• Connections:
  • Terminal block​​​​​​​
• Wire burnout detection
  • Yes
• Peak-hold function:
  • Yes
• Maximum rated input:
  • Voltage Input:
    • ±15VDC
  • Current Input:
    • ±30mA
• Operating temperature:
  • 0...55°C.
• Humidity:
  • 10...90% (non-condensing).
