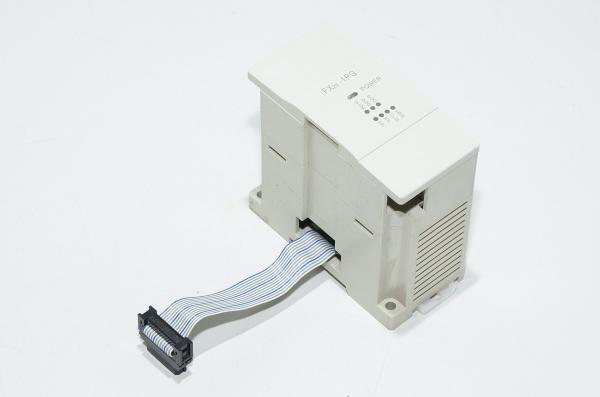

Mitsubishi Melsec FX2N-1PG-E V1.72 pulse output position controller / single axis positioning module

The positioning module FX2N-1PG-E is an extremely efficient single-axis positioning module for controlling either step drives or servo drives (by external regulator) with a pulse chain. It is very suitable for achieving accurate positioning in combination with the Melsec FX series. The configuration and allocation of the position data are carried out directly via the PLC program. A very wide range of manual and automatic functions are available to the user.

Further special features are:

• Possibility of absolute or relative positioning.
• 7 different operation functions, such as jog mode, zeroing, variable speeds, etc.
• Separate programming units and operator panels are not required.
• The speed increase or decrease can be set either automatically or manually.

Mitsubishi Melsec FX2N-1PG-E V1.72 unit technical details:

• General specification:
  • Conforms to FX2N base units (CPU units)
• Signal level for digital inputs:
  • 24VDC / 7...40mA
• Accessible axes:
  • 1
• Output frequency:
  • 10...100000 pulses/s (10Hz...100kHz)
• Rated I/O points:
  • 8
• Firmware version:
  • V1.72
• Mounting:
  • DIN rail
  • 2x4mm holes at the corners
