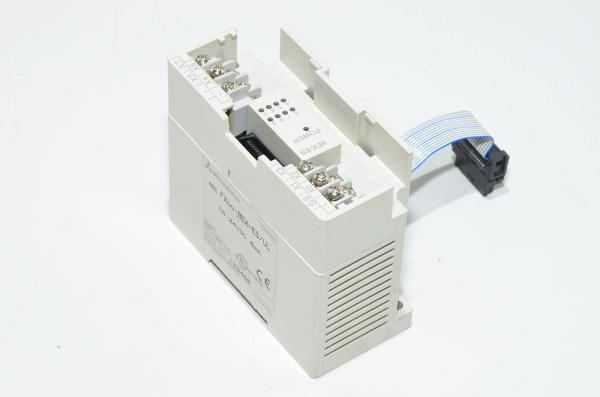

Mitsubishi Melsec FX0N-8EX-ES/UL modular extension unit with 8x sourcing/sinking 24VDC inputs

The FX0N series modular extension units are available with 16 input/output points. It is possible to choose between relay and transistor output type.

Special features:

• LEDs for indicating the input and output status
• MELSEC FX2N series compatible
• Especially compact design
• Vertical mounted (at 8 I/Os) or horizontally mounted (at 16 I/Os) terminal blocks with a cable guide to the upper or lower side

Mitsubishi Melsec FX0N-8EX-ES/UL unit technical details:

• General specification:
  • Conforms to FX0N base units (CPU units)
• Power supply:
  • All modular extension units are supplied by the base unit
• Integrated inputs:
  • 8x sourcing/sinking inputs 24VDC 5mA
• Min current for logical 1:
  • 3,5mA
• Max current for logical 0:
  • 1,5mA
• Response time:
  • For all base units of the Melsec FX2N series values:
    • 10ms
• Mounting:
  • DIN rail
  • 2x4mm holes at the corners

There might not be enough hole blanking plates for all units. Most complete units are sold first.
