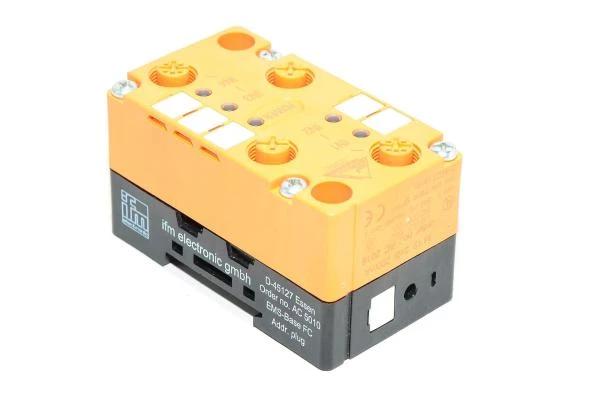

IFM AC5010 AS-i EMS-base coupling module with FC addressing socket and IFM AC2016 AS-i active classic I/O module with 2x2 sinking 24VDC inputs

AS-i interface (Actuator Sensor Interface) field bus component which is suitable to use as part of system where other components are compatible AS-i bus system. AS-i system transfers only little data (167kbit/s), but it delivers data fast (5ms). Because of this the bus is mostly used to transmit sensors and switches on/off state informations in a digital format.

Technical specifications:

IFM AC5010 AS-i EMS-base with FC addressing plug

• Installation method:
  • DIN rail
  • Free installation through 5,5mm holes at the corners
• Electrical design:
  • FC coupling module
• Operating voltage:
  • 26,5-31,6VDC
• IP protection class:
  • Depending on the upper part used
• Connections:
  • AS-i interface to module upper part
  • Quick mounting technology for AS-i flat cable
  • Addressing plug
• Contact rating:
  • 2A
• Housing material:
  • PBT (Polybutylene terephthalate)(Pocan, Crastin, Duranex...)
• Operating temperature:
  • -25...+85°C

IFM AC2016 AS-i active classic I/O module with 2x2 sinking 24VDC inputs

• Connections:
  • 2x M12
  • AS-i interface to FC lower parts
• Operating voltage:
  • 26,5...31,6VDC
• Current consumption:
  • <235mA
• Build-in inputs:
  • 2x2 sinking inputs
    • Max. 30VDC 200mA
• Input current "1" / "0":
  • >5 / <1,5mA
• Switching level "1" signal:
  • >10V
• Short-circuit protection:
  • Yes
• AS-i-profile:
  • S-0.1
• I/O configuration:
  • 0 (Hex)
• ID-code:
  • 1 (Hex)
• AS-i certificate:
  • 01302
• Data-bits:
  • D0
    • I-1/2 pin 4
  • D1
    • I-1/2 pin 2
  • D2
    • I-3/4 pin 4
  • D3
    • I-4/4 pin 2
• IP protection class:
  • IP67
• Housing material:
  • PBT (Polybutylene terephthalate)(Pocan, Crastin, Duranex...)
• Operating temperature:
  • -25...+85°C
