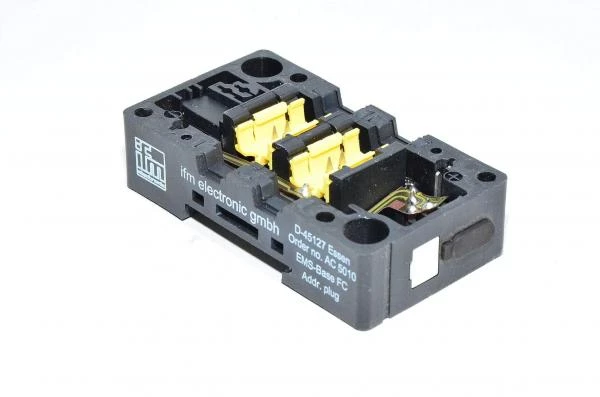

IFM AC5010 AS-i EMS-base coupling module with FC addressing socket

AS-i interface (Actuator Sensor Interface) field bus component which is suitable to use as part of system where other components are compatible AS-i bus system. AS-i system transfers only little data (167kbit/s), but it delivers data fast (5ms). Because of this the bus is mostly used to transmit sensors and switches on/off state informations in a digital format.

Technical specifications:

IFM AC5010 AS-i EMS-base with FC addressing plug

• Installation method:
  • DIN rail
  • Free installation through 5,5mm holes at the corners
• Electrical design:
  • FC coupling module
• Operating voltage:
  • 26,5...31,6VDC
• IP protection class:
  • Depending on the upper part used
• Connections:
  • AS-i interface to module upper part
  • Quick mounting technology for AS-i flat cable
  • Addressing plug
• Contact rating:
  • 2A
• Housing material:
  • PBT (Polybutylene terephthalate)(Pocan, Crastin, Duranex...)
• Operating temperature:
  • -25...+85°C
