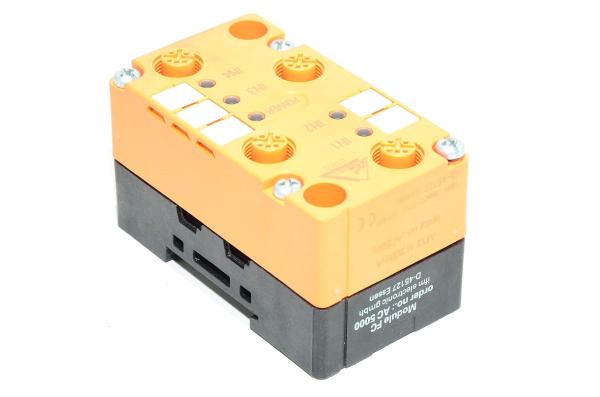

IFM AC5000 AS-i EMS-base coupling module and IFM AC2005 AS-i active classic I/O module with 4x sourcing transistor output 24VDC 200mA and 4x sinking 24VDC inputs

AS-i interface (Actuator Sensor Interface) field bus component which is suitable to use as part of system where other components are compatible AS-i bus system. AS-i system transfers only little data (167kbit/s), but it delivers data fast (5ms). Because of this the bus is mostly used to transmit sensors and switches on/off state informations in a digital format.

Technical specifications:

IFM AC5000 AS-i EMS-base

• Installation method:
  • DIN rail
  • Free installation through 5,5mm holes at the corners
• Electrical design:
  • FC coupling module
• Operating voltage:
  • 26,5...31,6VDC
• IP protection class:
  • Depending on the upper part used
• Connections:
  • AS-i interface to module upper part
  • Quick mounting technology for AS-i flat cable
• Contact rating:
  • 2A
• Housing material:
  • PBT (Polybutylene terephthalate)(Pocan, Crastin, Duranex...)
• Operating temperature:
  • -25...+85°C

IFM AC2005 AS-i active classic I/O module with 4x sourcing transistor output 24VDC 200mA and 4x sinking 24VDC inputs

• Built-in inputs:
  • 4x sinking inputs
• Built-in outputs:
  • 4x sourcing transistor outputs
• Connections:
  • 4x M12
  • AS-i interface to FC lower parts
• Operating voltage:
  • 26,5...31,6VDC
• Current consumption:
  • <235mA
• Input circuit:
  • DC PNP
• Voltage range:
  • 20...30VDC
• Max current load for all inputs total:
  • 200mA
• Input current "1" / "0":
  • >5 / <1,5mA
• Switching level "1" signal:
  • >10V
• Short-circuit protection:
  • Yes
• AS-i-profile:
  • S-0.0
• I/O configuration:
  • 0 (Hex)
• ID-code:
  • 0 (Hex)
• AS-i certificate:
  • 01302
• Data-bits:
  • D0
    • I-1 / pin 2+4
  • D1
    • I-2 / pin 2+4
  • D2
    • I-3 / pin 2+4
  • D3
    • I-4 / pin 2+4
• IP protection class:
  • IP67
• Housing material:
  • PBT (Polybutylene terephthalate)(Pocan, Crastin, Duranex...)
• Operating temperature:
  • -25...+85°C
