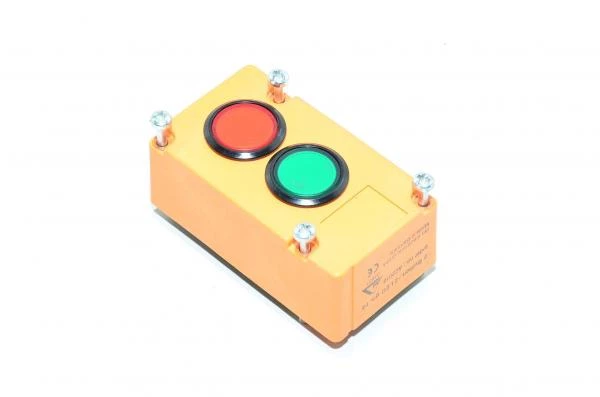

IFM AC2018 AS-i active module upper part with 2x pushbuttons and 2x LED indicators

AS-i interface (Actuator Sensor Interface) field bus component which is suitable to use as part of system where other components are compatible AS-i bus system. AS-i system transfers only little data (167kbit/s), but it delivers data fast (5ms). Because of this the bus is mostly used to transmit sensors and switches on/off state informations in a digital format.

Technical specifications:

IFM AC2018 AS-i active pushbutton module with 2x pushbuttons and 2x LED indicators

• Connections:
  • AS-i interface to FC and SC lower parts
• Operating voltage:
  • 26,5...31,6Vdc AS-i
• Current consumption:
  • <55mA AS-i
• Extended addressing mode possible
  • Version 2.11 / no
• AS-i-profile:
  • S-3.F.F
• I/O configuration:
  • 3 (Hex)
• ID-code:
  • F.F (Hex)
• AS-i certificate:
  • 04801
• Data bits:
  • D0
    • Button 2 (Red)
  • D1
    • Button 1 (Green)
  • D2
    • LED 2 (Red)
  • D3
    • LED 1 (Green)
• IP protection class:
  • IP67
• Materials used:
  • Housing material:
    • PBT (Polybutylene terephthalate)(Pocan, Crastin, Duranex...)
• Operating temperature:
  • -25...60°C
