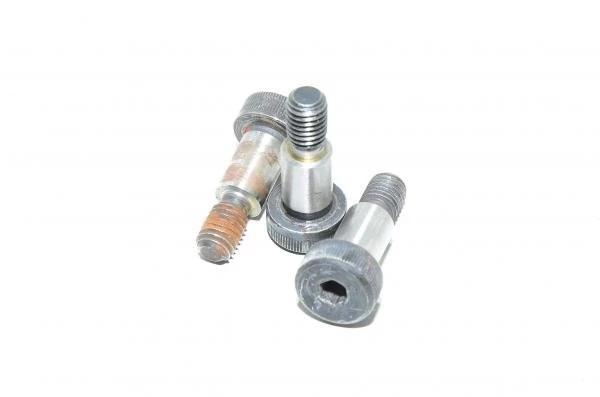

Erowa ITS tooling system pallet mounting screw set, shoulder screw with collar M8x1.25, 29/10/13mm, RH, allen hex socket, 12.9, ISO 7379

Elesa-Ganter shoulder screw with collar GN.35176 ISO 7379-10-M8-16, which collar has been slightly machined shorter. Screw has Allen wrench hex socket and it is meant to be used with Erowa ITS workpiece carrying system pallets. With this screw set you can mount something into the pallets or use them for entirely different purpose.

Technical details:

• Thread:
  • M8x1.25
• Thread nominal length:
  • 13mm
• Nominal overall length:
  • 29mm
• Collar length:
  • 15mm (it has been shortened for ~1mm from the original size)
• Collar diameter:
  • 10mm
• Suitable Allen hex key:
  • 5mm
• Hardness:
  • 12.9
• Thread direction:
  • Right-handed (RH, clockwise) thread
• Confirms to the following standards:
  • ISO 7379

Set contains 3x screws.
