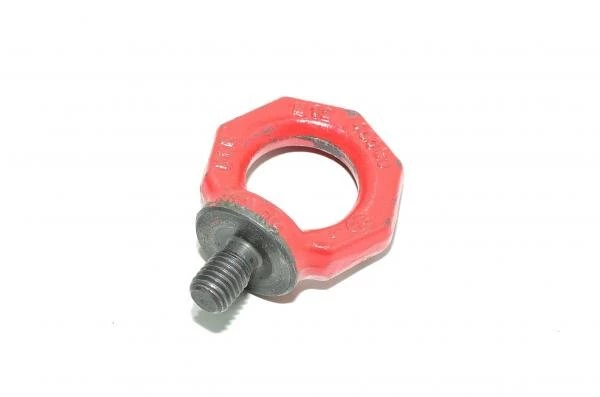

M12 shouldered lifting eye bolt RUD RS HNR, grade 8

Grade 8 shouldered lifting eye bolt for various lifting, hoisting and rigging purposes.

Features:

• Forged material 1.6541, high tensile strength and annealed, 100% electromagnetic crack detected according to EN 1677-1 and with a 4 :1 design factor. Fool-proof compared with common DIN eye bolts by:
  • Shape:
    • Octagonal means quality class 8
  • Identification:
    • Distinct indication of WLL for the most unfavorable case (lateral load - not allowed with DIN 580).

Precautions:

• Ensure the eye bolt is bolted down flush to the surface!
• Avoid twisting movements during transport.
• Impact loaded or when operated in environments with vibrations, unintentional loosening can happen. Use thread locker or wedge-locking washers (for example Nord-Lock washers)

Technical dimensions:

• Bolt size:
  • M12x18mm
• Shoulder diameter:
  • 31mm
• Eye diameter:
  • 30mm
• Eye thickness:
  • 13mm
• SWL:
  • 400kg
• Safety factor:
  • 4:1

Meets following standards:

• DIN 580
• CE
