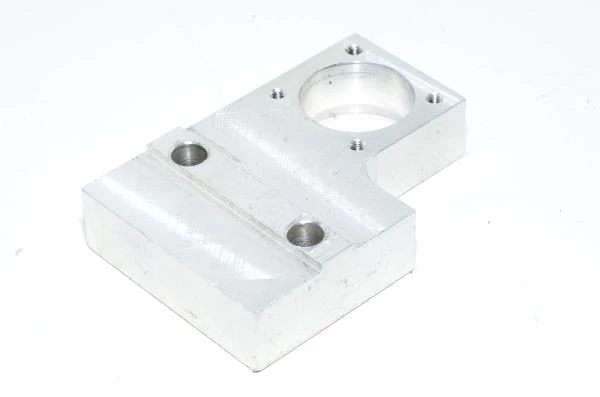

Afag PE-B positioning unit aluminium mounting bracket (equivalent model)

This is a mounting bracket for Afag PE-B positioning unit. This unit can be used for mounting this "Parker Origa Hoerbiger PA67320-0025 SZ6025/25 double-acting short stroke compact cylinder + extension with slide bearing" into Afag conveyor belts and/or aluminium profiles.

Mounting bracket technical details:

• Material:
  • Aluminium
• Mounting holes:
  • 2x 8.5mm holes (Positioning is carried out by 10mm flange instead of positioning rings)
  • 4x M4 mounting holes for cylinder
  • 1x 32/28mm counter bored hole for housing slide bearing assembly
• Material thickness:
  • 18mm
• Overall length:
  • 88.5mm
• Overall width:
  • 60mm
• Length of the larger part:
  • 50mm
• Cylinder holding piece width:
  • 39mm

Download Afag support plates and mounting brackets technical overview
