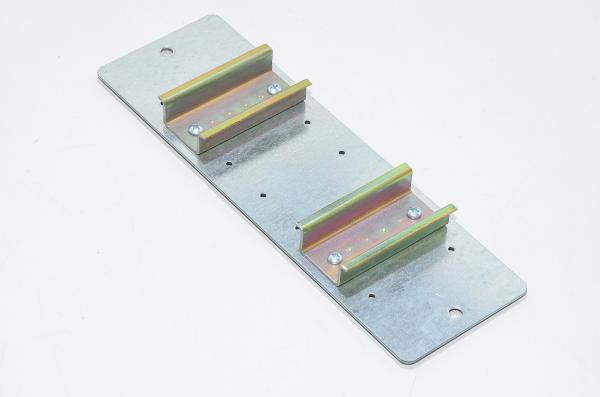

226x72x1,5mm steel plate with 2x adjustable 63mm 35x15mm DIN-rails

DIN-rail is standardized rail which is used in electrical cabinets and other installations, which can be easily used for mounting automatic fuses, contactors, relays, residual-current devices (RCD) / residual-current circuit breakers (RCCB), terminal blocks and other components. In industry it is common to clip various automation systems related equipment into DIN rail. The rail is usually prepared from sheet steel, to which is conducted ​​four bends and one of the standard sizes is 35mm (this size is used in virtually all small electrical cabinets in Finland)

Components width for 35mm rail can be indicated in modules, where one module equals 17,5mm. For example small voltage single phase automatic fuse width is usually one module and three phase equivalent correspondingly three modules.

When buying select the minimum length of rail, then we can guarantee you that the ordered rail will be at least that size. In case you already have an exact size (or suitable size range) on what you need you can inquire us about it or just give us a note when placing an order. This way you make your life easier and there will be less of pointless cutting.

DIN-Rail technical details:

• Material:
  • Yellow passivated steel
• Nominal dimensions:
  • 35x15mm
• Nominal hole size:
  • Solid model
• Length:
  • 63mm
• Confirms to following standards:
  • EN 50022
• Also known as:
  • Top hat section rail
  • Type O rail (Omega type)*
  • Type Ω rail (Omega type)*
  • Rail with hat-shaped cross section
  • High DIN mounting rail
  • High profile DIN rail
  • Top hat rail EN 50022 – 35 × 15 (official designation in standard)

Do not confuse this for Ω rail named gun accessory attachment rail system. This is totally different thing.

Mounting plate technical details:

• Material:
  • Zinc plated steel
• Dimensions:
  • 226x72x1,5mm
• Mounting holes:
  • 2x 6mm holes for attachment
  • 14x 2,8mm holes for self tapping screws for attaching DIN-rails (offers 7 different rows of installation height)
  • DIN-rail mounting screws protrude about 3mm from the back side
