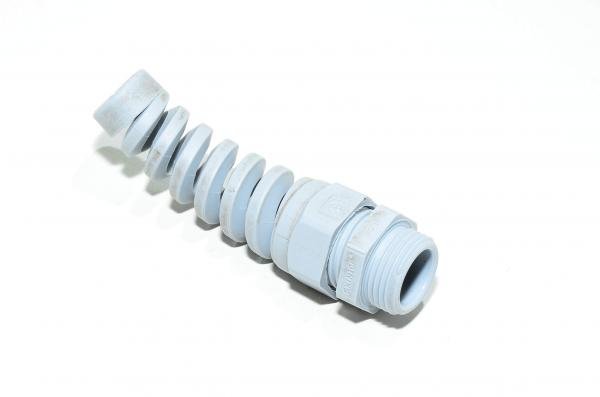

PG11, Lapp Kabel Skintop 53015620 BS 11 cable gland with strain relief for 4...10mm cable, gray, plastic, IP68

A cable gland (in the U.S. more often known as a cable connector or fitting) is a device designed to attach and secure the end of a cable to the equipment. A cable gland also provides strain-relief for the cable. Cable glands may also be used for sealing cables passing through bulkheads or gland plates. Cable glands are mechanical cable entry devices and they are used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately

Cable gland technical information:

• Product model series:
  • Skintop standard cable gland with flexible cable strain relief
• Material:
  • Polyamide (plastic)
• Color:
  • Gray RAL7001
• Male thread:
  • PG 11
• Suitable diameter of cable:
  • 4...10mm
• Suitable spanner size:
  • 22mm
• Max height of the cable gland's visible part (measured with the nut fully open):
  • 30mm
• Male thread length:
  • 8mm
• Sealing ring:
  • Supports one, but it is not included into delivery
• Protection class:
  • IP68
• Operating temperature:
  • -40...100°C
