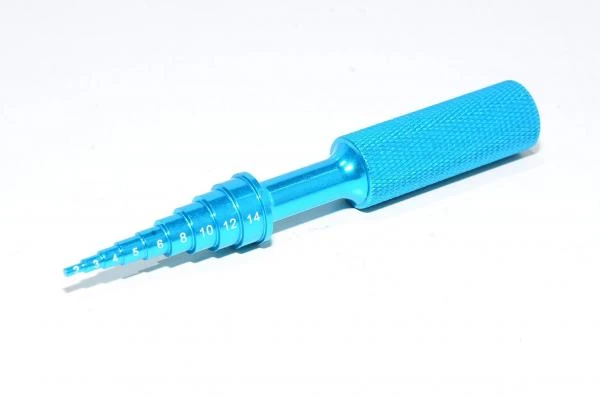

Blue anodized aluminium bearing installation tool with 2-14mm diameters in 9x steps *new*

This simple tool is used for seating small bearings onto their places. Slide the beading in, align the tool and gently push the bearing in. Due to the fact that the tool grabs the bearing by the center race, it is not even intended to be used with great force. Rather this tool helps you align the bearing properly in order for it to easily slide in. The long shaft will help visualizing which way your bearing is tilted. If you need force, it is recommended to use a washer/washers with this tool in order to apply the seating pressure into bearings outer race, while pushing the bearing into it's pocket. The tool is also made out of aluminium in order to reduce the risk of damaging the bearings. In some cases this tool can also be used as an extractor by pushing it into the bearing and pulling or depending on the situation pushing the bearing out of it's pocket.

Bearing installation tool technical details:

• Material:
  • Blue anodized aluminium and laser engraved shaft diameter markings
• Diameter of various steps on the tool:
  • 2mm
  • 3mm
  • 4mm
  • 5mm
  • 6mm
  • 8mm
  • 10mm
  • 12mm
  • 14mm
• Overall length:
  • 113mm
• Conical tool part length:
  • 44mm
• Handpiece length:
  • 45mm
• Handpiece diameter:
  • 16mm
