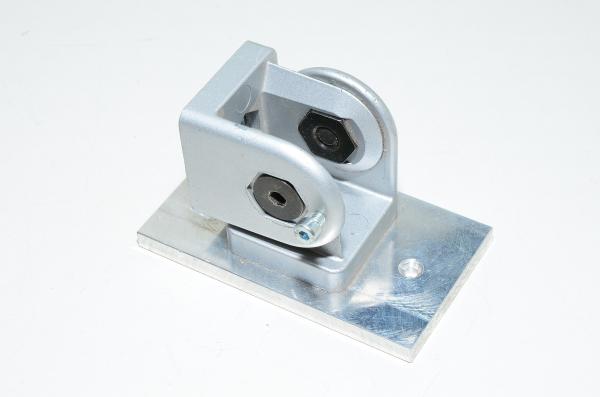

Item 0.0.406.37 40x40mm heavy duty hinge for profiles with 8mm groove + do it yourself stopper and mounting plate

Alloy hinge for connecting profiles at various angles up to 180° and for use as heavy-duty hinges (adjustment range ± 90°). When used in conjunction with the spacer rings, they can be used as freely movable hinges. If the spacer rings are removed, they can be used as rigid angle elements, as an example for bracing.

Hinge technical details:

• Hinge dimensions:
  • 40x40x60mm
• Mounting plate nominal dimensions:
  • 92x53x6mm (actual unit might slightly vary)
• Material:
  • Alloy
• Working angle:
  • 180°
• Max axial load:
  • With rigid connection:
    • 5000N
  • With movable connection:
    • 750N
• Max lateral load:
  • With rigid connection:
    • 1000N
  • With movable connection:
    • 750N
• Joint connection:
  • 2x M8 screws with sleeve nuts
• Mounting holes:
  • 1x 8.2mm + 1x 8.2mm
  • 2x 3.5mm counter sunk holes in mounting plate
• Size:
  • Line 8 (for 8mm profile grooves)
• Dowels:
  • Might have some or might not have any. Depends upon unit.
