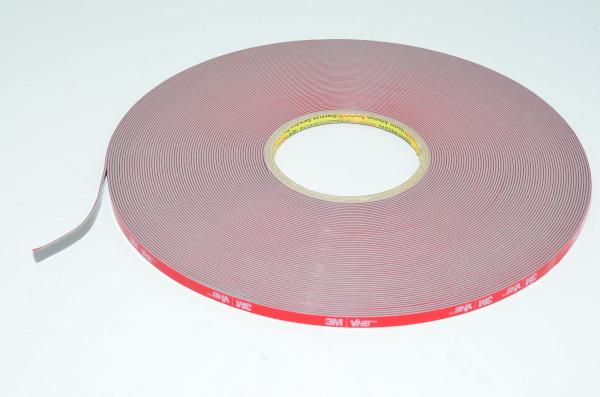

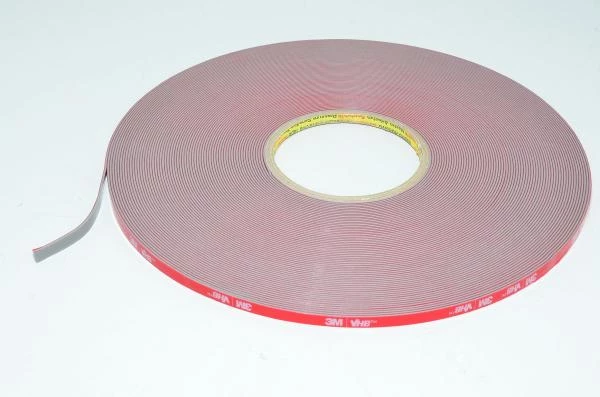

3M VHB GPH-110GF 6mm wide 33m long gray acrylic foam double sided tape reel *new*

As the name says (VHB) this tape has very high bonding force. In laymans terms this adhesive tape sticks like a shit to a blanket. We actually had ourself a need to get some stuff mounted really reliably and this was the most sturdiest stuff we got our hands on. This works very well when installing our aluminium LED profiles.

Double sided adhesive tape technical details:

• Reel length:
  • 33m
• Tape width:
  • 6mm
• Tape material:
  • General purpose, high temperature, grey conformable double coated acrylic foam tape with a high initial tack and a soft foam.
• Key features:
  • Acrylic foam with 100% closed cell structure
  • High temperature performance (short term 230°C)
  • Good balance of high temperature and peel & shear performance
  • High initial tack
  • Soft foam enables stress relaxation & an easy application
  • Good sealing properties
  • For indoor and outdoor applications
  • Capability to bond to a variety of substrates makes it a good fit for multi material bonding. Those substrates have a high or medium surface energy including many metals (e.g. stainless steel) and plastics (e.g. Polyamide, PMMA, ABS)
  • For applications in metal working, signage, appliances and specialty vehicle
• Performance characteristics:
  • 90° Peel adhesion to Stainless Steel according to ASTM D3330, 90° peel angle @ RT, after 72h @ RT dwell:
    • 37N/cm
  • 90° Peel adhesion to PA6 according to ASTM D3330, 90° peel angle @ RT, after 72h @ RT dwell:
    • 48N/cm
  • 90° Peel adhesion to ABS according to ASTM D3330, 90° peel angle @ RT, after 72h @ RT dwell:
    • 33N/cm
  • 90° Peel adhesion to PMMA according to ASTM D3330, 90° peel angle @ RT, after 72h @ RT dwell:
    • 34N/cm
  • Dynamic Shear according to ASTM D1002 on stainless steel, after 72h @ RT dwell:
    • 476N/6.54cm²
  • Static Shear Strength according to ASTM D3654, after 72h @ RT dwell (Weight held for 10.000 minutes to stainless steel, 3.32cm² (0.5in²):
    • 23°C
      • 1000g
    • 150°C
      • 500g
  • Normal Tensile (T-Block) according to ASTM D897to Aluminium @ RT, after 72h @ RT dwell, 6.45 cm², test speed 50 mm/min:
    • 439N/6.54cm²
  • Temperature performance:
    • Short term (minutes, hours):
      • 230 °C
    • Long term (days, weeks):
      • 150 °C
  • Application temperature:
    • Ideal application temperature range is 21... 38°C. Pressure sensitive adhesives use viscous flow to achieve substrate contact area. To obtain good performance with all 3M VHB Tapes, it is important to ensure that the surfaces are clean, dry and free of condensed moisture.
  • Installation method:
    • When installing the tape, it must be pressed well into place, so the pressure-activated adhesive is activated. You can even use a small rubber roller for pushing.

Download 3m VHB GPH series coated foam acrylic double sided tape technical datasheet
