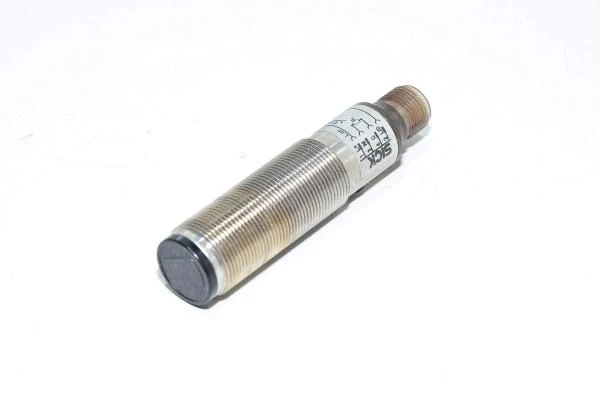

SICK VTE18-4P4240 cylindrical photoelectric sensor, 24VDC, 100mA, PNP, dark/light, M12

An optical light sensor is one of the most commonly used sensors. The photocell therefore creates a beam of light from itself and monitors the amount of light reflected back to it. When a object enters the spotlight (or alternatively leaves it), the sensor registers the change in the reflection. If the change exceeds the threshold value, the sensor output changes it's state. Generally speaking, using this type of sensor for yes/no type information is easy and simple.

Optical sensor technical details:

• Operating voltage:
  • 10...30VDC
• Current consumption:
  • 30mA
• Switching frequency:
  • 250Hz
• Response time:
  • ≤2ms
• Sensing range:
  • Typical max scanning distance:
    • 5...400mm
  • Typical operating range:
    • 5...350mm
• Light spot diameter at 400mm:
  • 20mm
• Angle of dispersion:
  • ~2,8°
• Sensor light type:
  • Infrared LED
• Max output current
  • 100mA
• Switching output:
  • 1x PNP
• Sensitivity:
  • Adjustable with trimmer resistor
• Switching state:
  • Yellow LED indicating signal strength
• Operating mode:
  • Light or dark switches output
  • Output mode is selected by wiring control wire
    • When 2pin is left unconnected = Dark switching on (D. on)
    • When 2pin connected to 1pin = Light switching on (L.on)
• Protection class:
  • IP67
• Power supply and output protections:
  • Reverse polarity protection
  • Short circuit and over current protection
  • Interference suppression
• Operating temperature:
  • -25...70°C
• Chassis mounting thread:
  • M18x1
• Electrical connection:
  • 4pin male M12 connector
