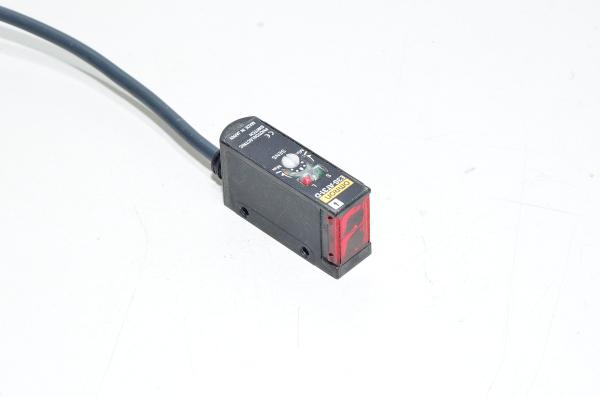

Omron E3S-AT31-D horizontal type photoelectric sensor (receiver) with built-in amplifier, 10-30VDC, 100mA PNP *new*

An optical light sensor is one of the most commonly used sensors. The photocell therefore creates a beam of light from itself and monitors the amount of light reflected back to it. When a object enters the spotlight (or alternatively leaves it), the sensor registers the change in the amount of light. If the change exceeds the threshold value, the sensor output changes it's state. Generally speaking, using this type of sensor for yes/no type information is easy and simple.

Photoelectric sensor technical details:

• Operating voltage:
  • 10...30VDC
• Current consumption:
  • 20mA
• Output max current:
  • 100mA
• Sensing distance:
  • 7m
• Light source:
  • Red LED (700nm)
• Sensing Method:
  • Through-beam
• Connection method:
  • Wire connection:
    • Brown:
      • +10...30VDC operating voltage
    • Blue:
      • Ground
    • Black:
      • Output signal
• Response time (operation or reset):
  • 0,5ms
• Sensitivity adjustment:
  • Two-turn (endless) sensitivity adjuster with an indicator
• Protection circuits:
  • Power supply reverse polarity protection
  • Output short-circuit protection
• Control output:
  • PNP (sourcing output)
• Insulation resistance:
  • 20MΩ min. at 500VDC between current-carrying parts and case.
• Dielectric strength:
  • 1000VAC, 50/60Hz for 1 min. between current-carrying parts and case.
• Vibration resistance (destruction):
  • 10...55Hz, 1,5-mm double amplitude for 2 hours each in X, Y, and Z directions.
• Shock resistance (destruction):
  • 500m/s² , 3 times each in X, Y, and Z directions.
• Materials:
  • Case:
    • Polybutylene terephtalate
  • Lens:
    • Denaturated polyallalate
• Protection class:
  • IP67
• Operating temperature:
  • -25...+55°C

Download Omron E3S-A-series built-in photoelectric sensor technical datasheet
