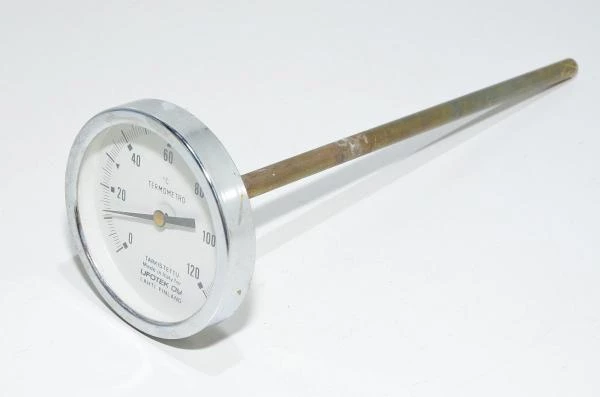

Ufotek 80mm 0-120C temperature gauge with 9x251mm thermowell and zero-point adjustment screw

Temperature meter, which is designed to monitoring water temperature as an example in warm water boiler.

Temperature meter technical details:

• Gauge diameter:
  • 80mm
• Thermal well dimensions (the long tube that senses the temperature):
  • 9x251mm
• Material:
  • Meter:
    • Steel
  • Thermal well:
    • Apparently brass
• Temperature range (measuring scale):
  • 0...120°C
• Installation method:
  • Stick it into 9mm inner diameter tube and let it be there. Tube has to be sealed from the other end in order to isolate the meter from measured fluid.
• Zero-point adjustment:
  • Adjustment screw is located at the bottom of thermal well, which allow finetuning the 0-point into the correct place.
