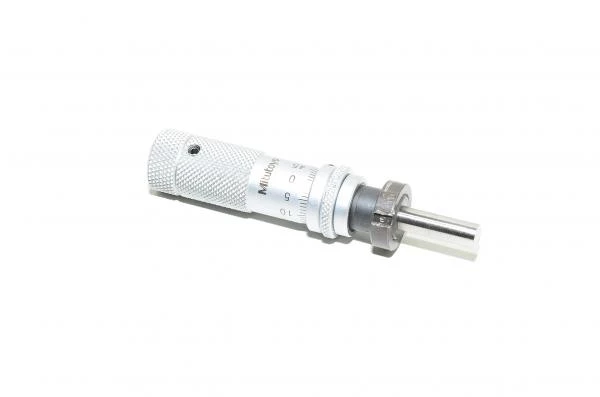

Micrometer head - Mitutoyo model 148-504 with flat tip, lock ring, lock nut and adjustable zero point

Manufacturer:

Mitutoyo
Model:
Mitutoyo Series 148-504
Dimension:
70 x 15 x 15 mm
Weight:
50 g

Availability: 2pcs
Condition: Used

Price Including VAT: 37.65€
Ex Tax: 30€

Quantity

pcs

Make an offer

Multipurpose micrometer head from Mitutoyo. Based on the Mitutoyos common standard series 148 small micrometer head design. Standard small size make these mic heads convenient for many gage fixtures.

Example of suitable aplications:

Precision depth measurement
Precision thickness measurement
Jig precision aligment / adjustment
Measurement unit for custom measurement device (ie fit one or more of these into custom frame)
Can be used to measure stuff under microscope or similar environment (screw can be used for manuvering glass with observed sample, register start value and positon, move required amount to desired end position and check the reading again, execute some math and you got the measurement of something that you were observing through objective.)
Precision end position stopper for wide variety of applications.

Measurement equipment
Accuracy	+/- 2µm
Fixture thickness	6mm when used with lock nut
Graduation	0.01mm
Measurement locking	With lock ring
Measurement range	0-13mm
Scale surface	Hard-chrome plating
Spinde face	Flat tip
Spindle diameter	5mm
Spindle pitch	0.5mm
Stem diameter	9.5mm
Stem face	Equipped with lock nut
