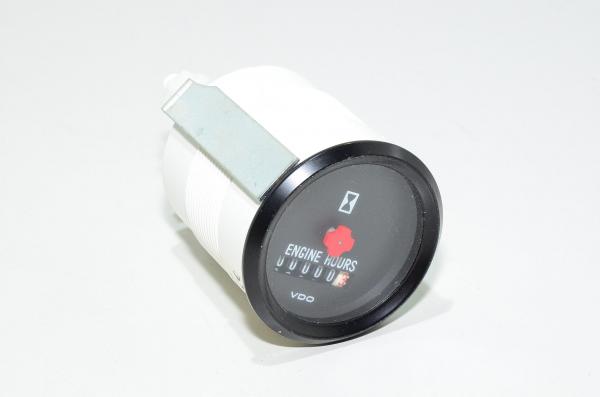

VDO 331 032 001 non-illuminated circular panel mounted hour meter with black bezel *new*

Hour meter for tracking time. Simple and easy method to follow up how many hours something has been on. Meter operation is not difficult either. Just connect the electrical terminals to operating voltage and when the voltage is present the timer counts.

Hour meter technical details:

• Counting resolution:
  • 0-99999.9h (last digit shows time in 10min increments)
• Operating voltage:
  • 12...24VDC
• Mounting:
  • Meter can be panelmounted into 52mm hole with the included panel mounting bracket.
  • It is possible to use 2" jam nut with 16G3/8’ threads for fixing this meter.
• Electrical connections:
  • 6.25x0.7mm spade connectors in T-formation
